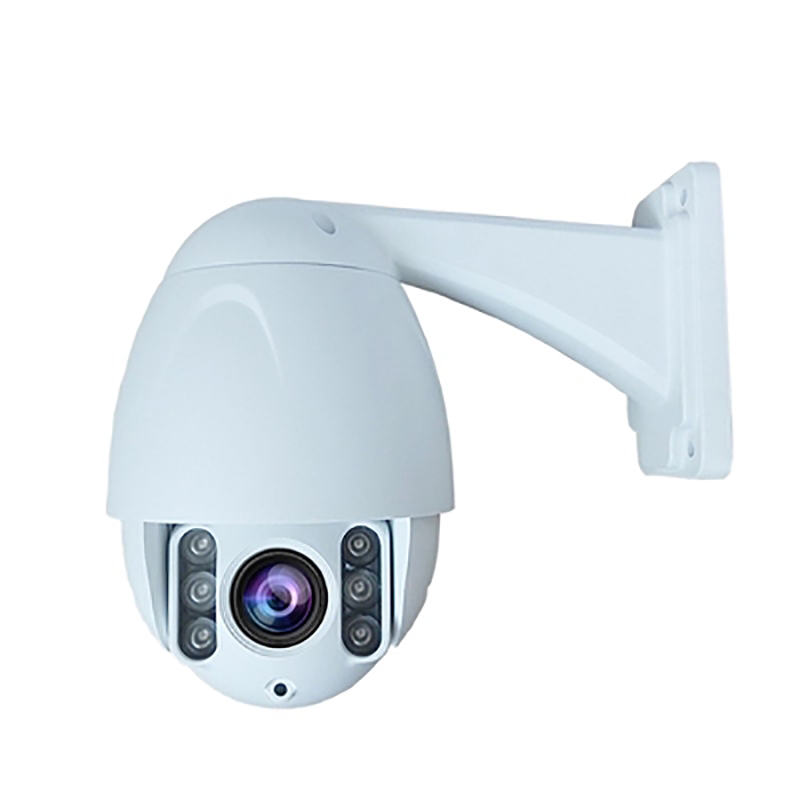

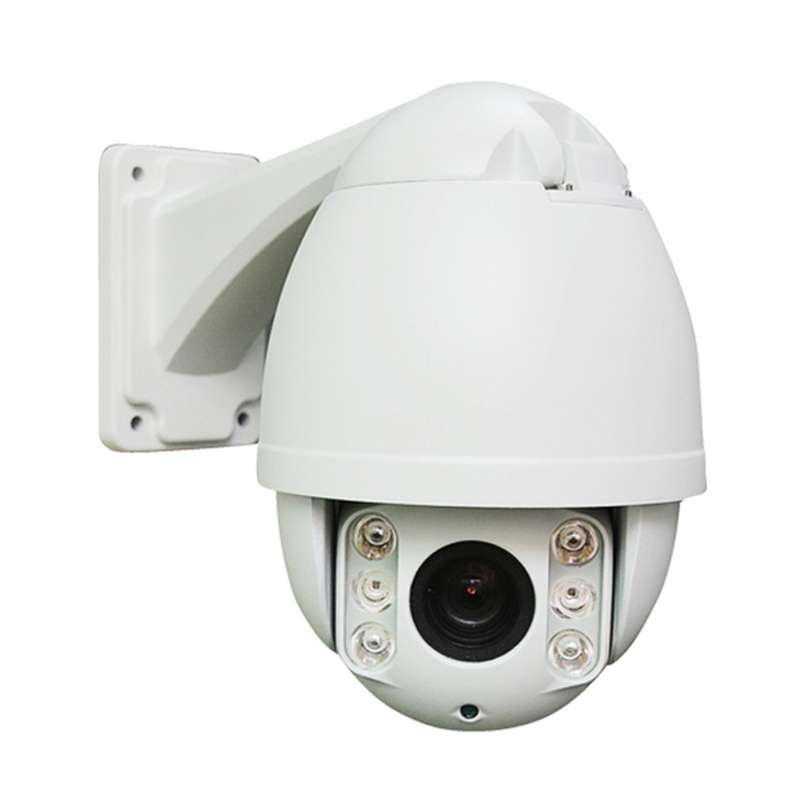

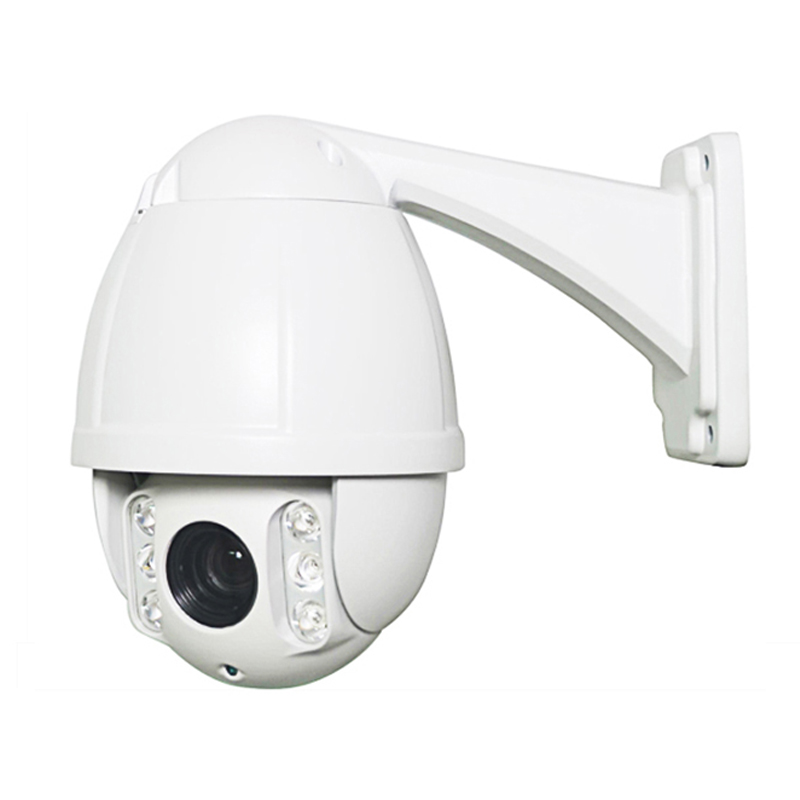

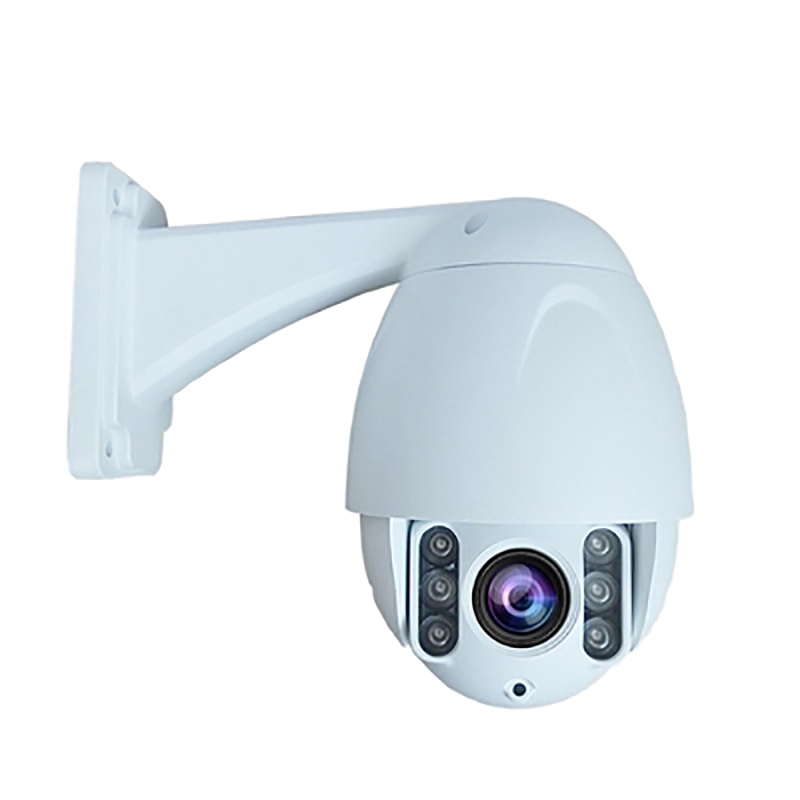

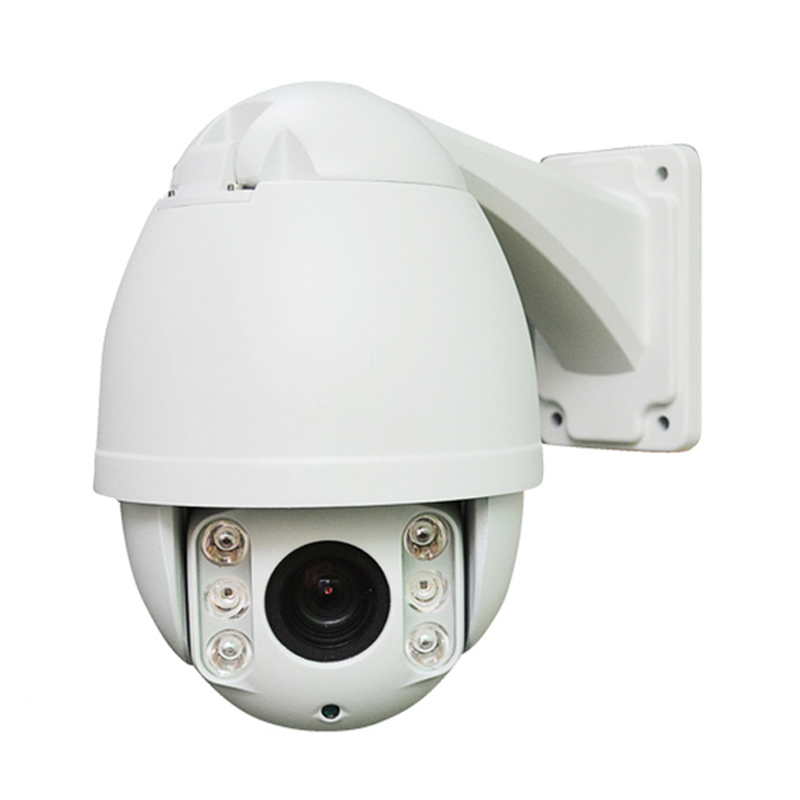

Description:
Feature:
* 2.0MP/5.0MP Analog/IP.
* 10X Optical Zoom.
* With 6pcs Array IR Led.
* Effect IR Distance 60M.
* Medium Speed Dome Camera.
* Range:Pan:0º~360º , Tilt:-0º~180º .
* Speed:Pan:0~200°/s , Tilt:0~100º/s.
* POE/Audio/Alarm/TF Card Optional.
* IP66 Weatherproof Standard.
* Transient Voltage 6000V Thunder Protect.
* Minimum illumination of 0.00 Lux (Led on).
* Support Remotely Upgrade.
* PWM Infrared Light Technology.
Installation Note:
(1) Do not use this product falls on the ground or the strong tapping;
(2) Unless the instructions, otherwise do not disassemble the machine itself;
(3) Before use, please determine whether the power supply for the specified voltage;
(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a bright or light phenomenon (this is not a fault), will also affect the Chipset life;
(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;
(6) If found abnormal situation, please unplug the power and contact the local distributor.
(7) Lightning protection earth wire should be grounded to the nearest.
Model No. | H4M-4310 | HHS-4310 | HAF-4310 | |||
Video Encode | AHD/TVI/CVI/XVI/CVBS | H.265 | H.265 | |||
Image Sensor | 1/3" SONY CMOS | 1/3" SONY CMOS | 1/3" CMOS | |||
Chipset | NVP2441H+SONY IMX323(3D NR) | Hi3516CV300+IMX323 | Hi3516D+AR5521 | |||
Resolution | 2.0 Megapixels | 2.0 Megapixels | 5.0 Megapixels | |||
Pixel | 1080P=1920×1080 | 1080P=1920×1080 | 2592x1944/2592x1520 | |||
FPS | 25FPS | 25FPS | 15FPS/25FPS | |||
Illumination | 0.01 Lux/F1.2 | 0.01 Lux/F1.2 | 0.01 Lux/F1.2 | |||
Optical LENS | 10X(5.1MM -51MM) | |||||
Speed | High Speed | |||||
IR LED | 6pcs Array IR Led,IR Distance 60 Meters | |||||
Rotation Range/Speed | Range:Pan:0º~360º,Tilt:0º~180º Speed: Pan:0~200°/s,Tilt:0~100º/s | |||||
Preset Points | 220pcs presets(dwell time 01-60s interval available) | |||||
Guard Tours | 3 groups( Max.16 points, dwell time user selectable) | |||||
AB Scan Range/Speed | Any point in range:-45º~40º and 0º~200º/1-9 grades | |||||
BLC/AGC/WB | Support/Auto/manual/Auto/Manual/Indoor/Outdoor | |||||
Thunder Protect | Transient Voltage 6000V Thunder Protect of Network,POE.... | |||||
IR board Interface | Original PWM infrared light technology, uniform brightness, low calorific value, The service life of infrared lamp is longer than 3 times. | |||||
IP Specification | ||||||
Video Processing | H.265 Video encoding, support dual-stream AVI format, code stream 0.05Mpbs ~ 3Mpbs | |||||
Network Interface | RJ45 10/100M Adaptive Ethernet Interface | |||||
Network Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |||||
Optional | PoE (IEEE802.3af)/Audio(G711,PCM )TF CARD(MAX 128G) | |||||
Function | Support IE WEB configuration, OSD, real-time video transmission, support the motion detecting, JPEG Screen shot, remote monitoring client software CMS, Mobile phone monitoring (iPhone, Windows Mobile, Android), provide SDK | |||||
S/N Ratio | >=50dB | |||||
ES | 1/50 - 1/10,0000S | |||||
Working Temp. | Outdoor: -40℃~+70℃ | |||||
Voltage Input | Power 12V DC 3A | |||||
Package Size | W295mm*D280mm*H170mm | |||||
Weight | Gross Weight:2.24KG(With Bracket) |
