Panoramic IP Camera

POSITION: Home > Products> IP Camera> Panoramic IP Camera

IPC-982

Description:

  • * 2M/3M/5M/8M H.265+.
  • * 5:12pcs IR LED 10M.
  • * 1.8mm Starlight Lens 3M/5M/8M.
  • * Built-in Microphone Optional.
  • * Support XMeye/Danale P2P/SDK/Live Cloud.
  • * Free 32CH IPClient and 64CH CMS Software.
  • * Protocols:RTSP/RTMP/ONVIF(Dahua,HK).
  • * Audio I/O Port on Cable Optional.
  • * Alarm I/O Port on Cable Optional.
  • * With POE Module Cable,Built-in Optional.
  • * 48V POE Module Cable:IEEE802.3AF/AT.
  • * Indoor application.
  • * Metal Panorama Housing.

Feature:

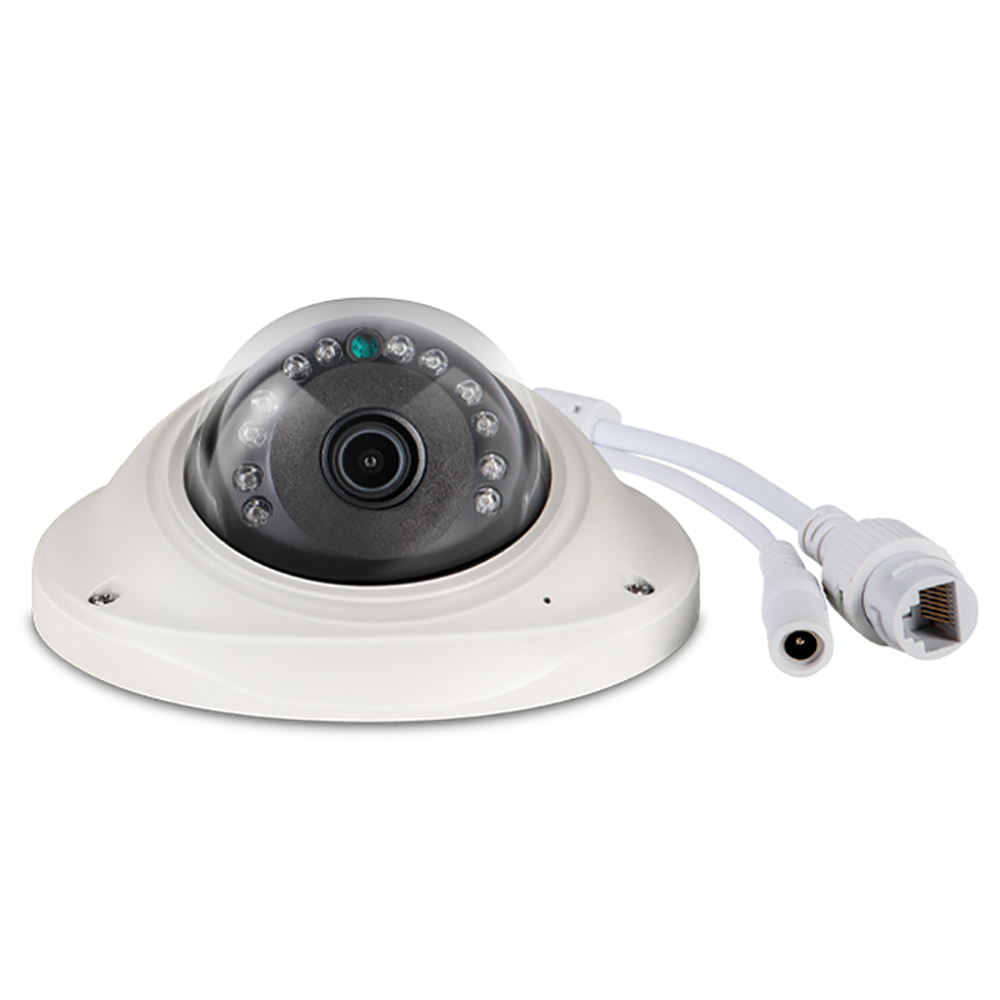

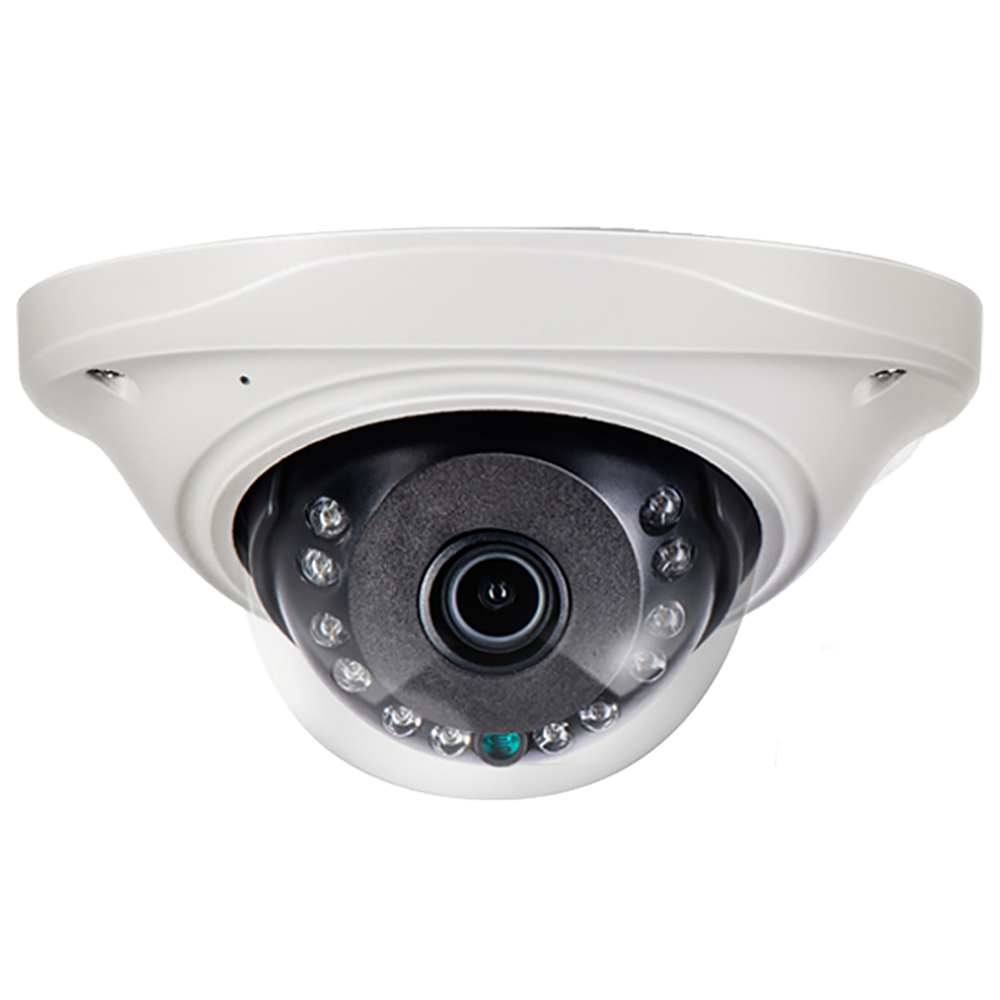

* Indoor IP Dome Camera.

* 2MP/3MP/5MP/8MP Chipset.

* H.265+/H.265/H.264/MJPEG.

* Built-in 18pcs SMT IR LED as Default.

* 5:36pcs IR LED/3pcs Array IR LED Optional.

* Effective IR Distance:15 Meters.

* Built-in 2MP/3MP/5MP/8MP 3.6mm StarLight Fixed Lens.

* Support XMeye/Danale P2P/SDK/Live Cloud.

* Free 32CH IPClient and 64CH CMS Software.

* Protocols:RTSP/RTMP/ONVIF(Dahua,HK).

* With POE Module Cable,Built-in Optional.

* 48V POE Module Cable:IEEE802.3AF/AT.

* Audio I/O Port on Cable Optional.

* Alarm I/O Port on Cable Optional.

* Support IOS/Android System.

* Indoor application.

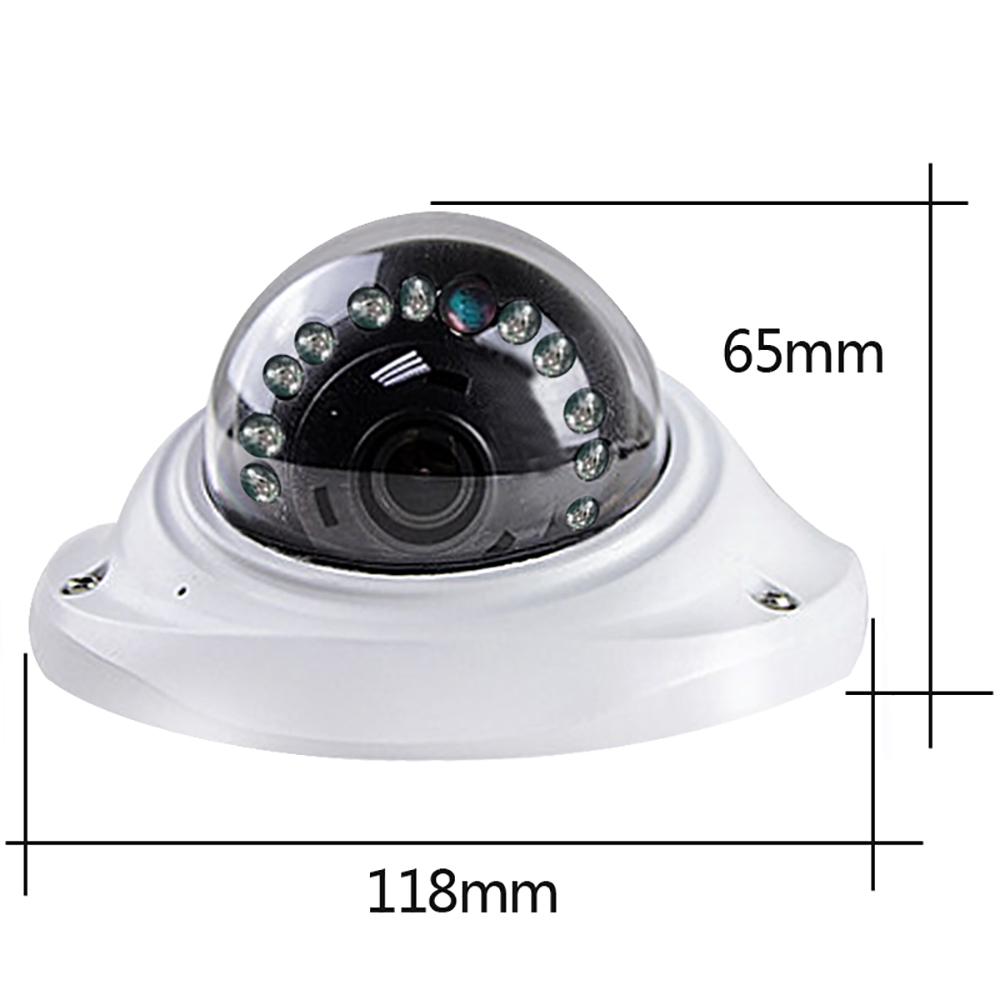

* 60mm Plastic Dome Housing.


Installation Note:

(1) Do not use this product falls on the ground or the strong tapping;

(2) Unless the instructions, otherwise do not disassemble the machine itself;

(3) Before use, please determine whether the power supply for the specified voltage;

(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a bright or light phenomenon (this is not a fault), will also affect the Chipset life;

(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;

(6) If found abnormal situation, please unplug the power and contact the local distributor.

(7) Lightning protection earth wire should be grounded to the nearest.


Installation and Operating Instructions:

(1) Make sure the power supply voltage is correct: DC12V,POE 48V, inside outside is negative.

(2) Using Cat5/Cat6 cable to transmit video signal to the monitoring equipment.

(3) Choose the right place to fix the camera.

(4) Connect the power and adjust the camera Angle come into view in the position of the target.








Model No.XMTXMCXMSTHSTHX
SystemPAL / NTSC
Video EncodeH.265+/H.265/H.264 Video encoding, support dual-stream AVI format,code stream 0.05Mpbs ~ 8Mpbs
Image Sensor1/3" CMOS1/2.8" CMOS1/2.8" SONY1/2.8" SONY1/2.8" SONY
ChipsetXM530AI+F37XM535AI+SC3335XM530AI+IMX307Hi3516EV200+IMX307Hi3516CV300+IMX290
Resolution2.0 Megapixels3.0 Megapixels2.0 Megapixels2.0 Megapixels2.0 Megapixels
Pixel1080P=1920×10803MP=2304×12961080P=1920×10801080P=1920×10801080P=1920×1080
FPS25FPS20FPS20FPS20FPS25FPS
Illumination0.01 Lux/F1.20.0001 Lux/F1.20.0001 Lux/F1.20.0001 Lux/F1.20.0001 Lux/F1.2
Night ModeLow Light
Low LightStarlightStarlightStarlight/WDR
LENSBuilt-in 3MP/5MP/8MP 3.6mm Starlight Fix Lens
IR LED18pcs SMT IR LED as Default,5:36pcs IR LED/3pcs Array IR LED,IR Distance 15 Meters
Audio I/OOptional(Input & Output Ports on Cable)
Alarm I/OOptional(Input & Output Ports on Cable)
Dual StreamMain:1920×1080@20FPS/25FPS,1280×720@25FPS;Sub:704×576@25FPS
Network InterfaceRJ45 10/100M Adaptive Ethernet Interface
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol
Onvif Protocol2.42
Thunder ProtectThunder Protect of Network,POE....
IR board InterfaceInput Signal and Video, IR-CUT, IR led linkage
POEBuilt-in 48V POE Module:IEEE802.3AF/AT
Function

Support WEB configuration, OSD, real-time video transmission, support the motion detecting,

JPEG Screen shot, remote monitoring client software, cloud services,

Mobile phone monitoring (iOS, Windows Mobile, Android), provide SDK

Reliability

Comprehensive lightning protection, 7 * 24 hours -10℃~65high temperature stable and reliable testing

ES

1/50(1/60)s to 1/10,000s

WDRSupport Digital WDR(>=80dB)
Smart FunctionSupport low bit rate, low delay, ROI area of interest and 4 ROI areas
Support occlusion detection, out-of-focus detection, brightness detection, color detection,
sound detection, residual detection, motion detection, virtual warning line, area invasion
Support intelligent control alarm on, off, fault clearance, intelligent noise reduction
ApplicationIndoor
Voltage Input

Power 12V DC 2A / POE 48V

Package Size9CM*10CM*10CM
WeightAppro x 0.3kgs
Model No.XMPXMFTHFXHKDNK
SystemPAL / NTSC
Video EncodeH.265+/H.265/H.264 Video encoding, support dual-stream AVI format,code stream 0.05Mpbs ~ 8Mpbs
Image Sensor1/2.7" CMOS1/2.8" SONY CMOS1/2.8" SONY CMOS1/3.0" CMOS1/2.8" SONY CMOS
ChipsetXM550AI+SC5335PXM550AI+IMX335Hi3516EV300+IMX335FH8856+GC8053 SSC328Q+IMX415
Resolution5.0 Megapixels5.0 Megapixels5.0 Megapixels5.0 Megapixels8.0 Megapixels
Pixel5MP=2592×19445MP=2592×19445MP=2592×19444K=3840×21604K=3840×2160
FPS15FPS15FPS15FPS15FPS20FPS
Color0.05 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.2
Night ModeLow Light
StarlightStarlightLow LightLow Light/HDR
LENSBuilt-in 3MP/5MP/8MP 3.6mm Starlight Fix Lens
IR LED18pcs SMT IR LED as Default,5:36pcs IR LED/3pcs Array IR LED,IR Distance 15 Meters
Audio I/OOptional(Input & Output Ports on Cable)
Alarm I/OOptional(Input & Output Ports on Cable)
Dual Stream

XMP/XMF/THF Main Stream:5M=2592*1944@15fps;4M=2560*1440@20fps;Sub-Stream:704*576@25fps;

XHK Main Stream:8M=3840*2160@15fps;5M=2592*1944@25fps;Sub-Stream:704*576@30fps;

DNK Main Stream: 8M=3840*2160@20fps;6M=3072*2048@30fps;Sub-Stream:720*480@30fps;

Network InterfaceRJ45 10/100M Adaptive Ethernet Interface
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol
Onvif Protocol2.42
Thunder ProtectThunder Protect of Network,POE....
IR board InterfaceInput Signal and Video, IR-CUT, IR led linkage
POEBuilt-in 48V POE Module:IEEE802.3AF/AT
FunctionSupport WEB configuration, OSD, real-time video transmission, support the motion detecting,
JPEG Screen shot, remote monitoring client software, cloud services, Mobile phone monitoring
(iOS, Windows Mobile, Android), provide SDK
ReliabilityComprehensive lightning protection, 7 * 24 hours -10℃~65high temperature stable and reliable testing
ES

1/50(1/60)s to 1/10,000s

WDRSupport Digital WDR(>=80dB)
Smart FunctionSupport low bit rate, low delay, ROI area of interest and 4 ROI areas
Support occlusion detection, out-of-focus detection, brightness detection, color detection,
sound detection, residual detection, motion detection, virtual warning line, area invasion
Support intelligent control alarm on, off, fault clearance, intelligent noise reduction
ApplicationIndoor
Voltage InputPower 12V DC 2A / POE 48V
Package Size9CM*10CM*10CM
WeightAppro x 0.3kgs
