Bullet IP Camera

POSITION: Home > Products> IP Camera> Bullet IP Camera

IPC-923

Description:

  • * 2M/3M/5M/8M H.265+.
  • * 6pcs Array IR LED 120M.
  • * 5-50mm Manual Varifocal Lens 3M/5M/8M.
  • * Support XMeye/Danale P2P/SDK/Live Cloud.
  • * Free 32CH IPClient and 64CH CMS Software.
  • * Protocols:RTSP/RTMP/ONVIF(Dahua,HK).
  • * Audio I/O Port on Cable Optional.
  • * Alarm I/O Port on Cable Optional.
  • * Motorized Lens Optional.
  • * Built-in 48V POE Module:IEEE802.3AF/AT.
  • * Outdoor IP66 Weatherproof Standard.
  • * Support IOS/Android System.

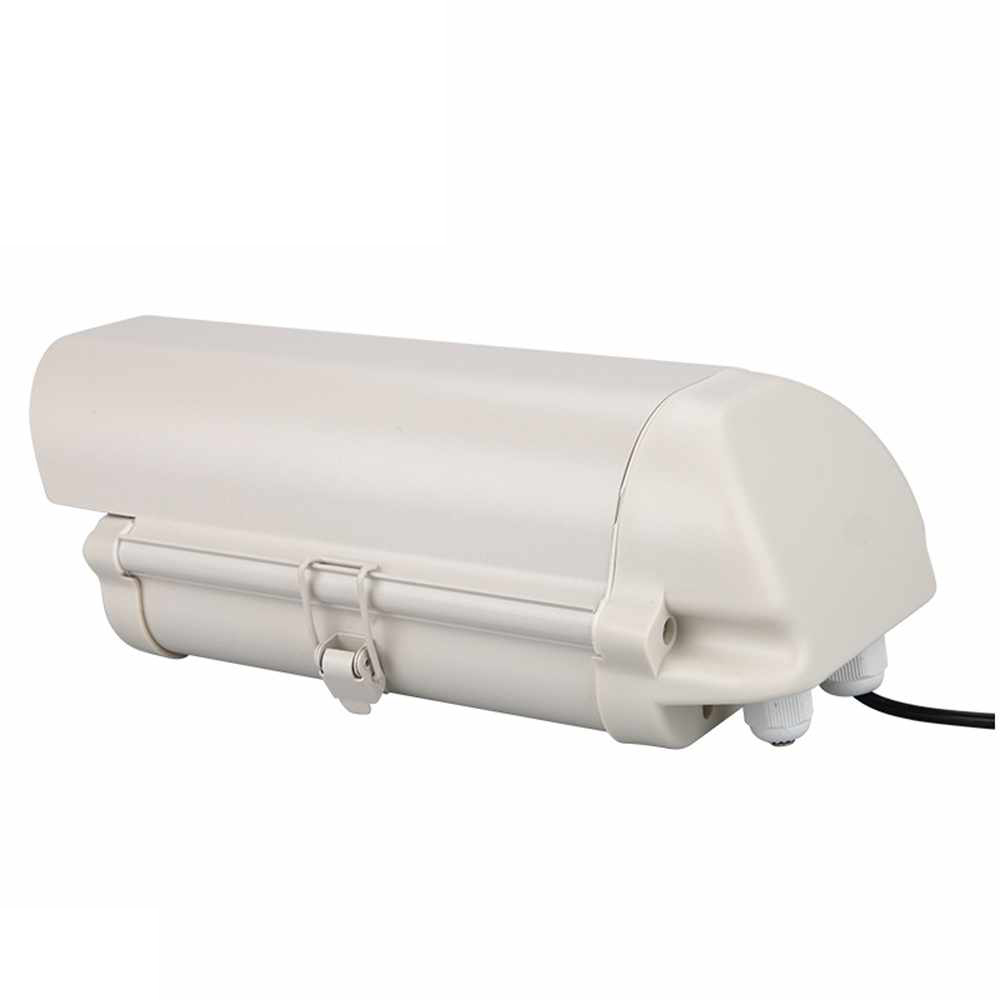

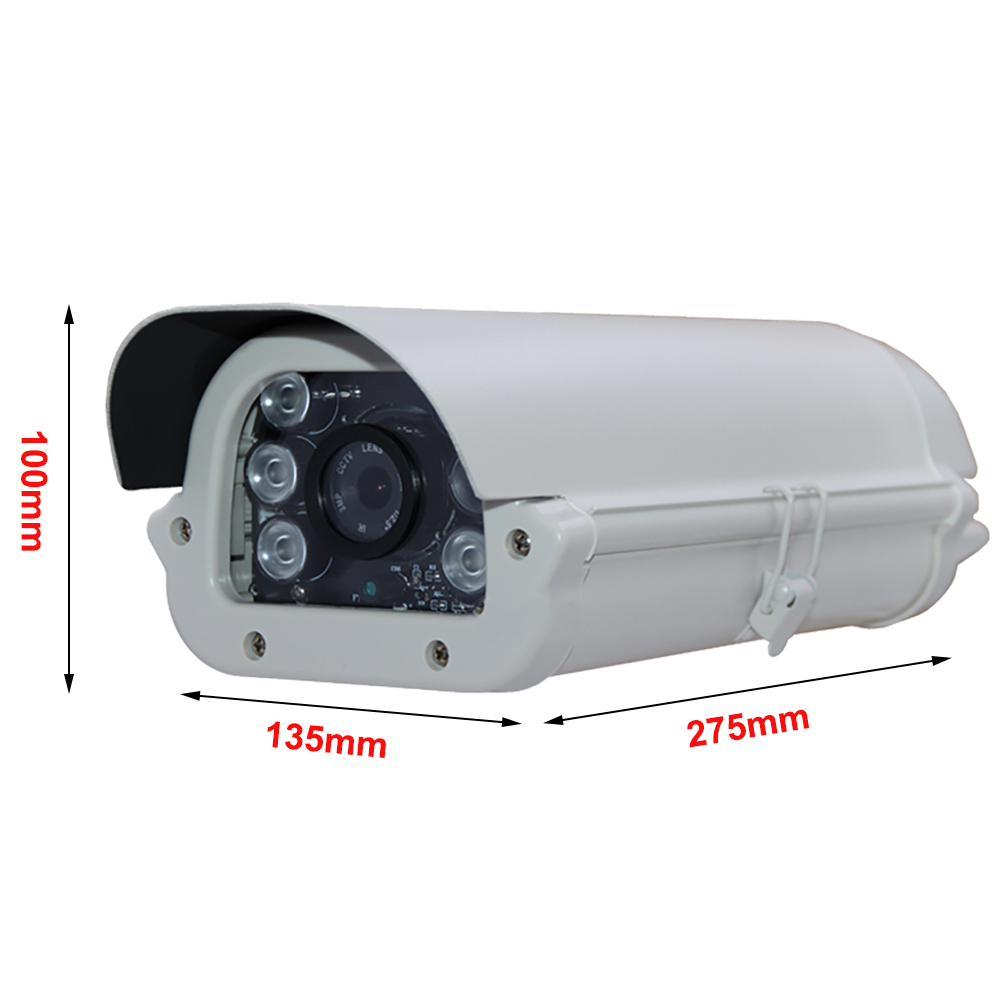

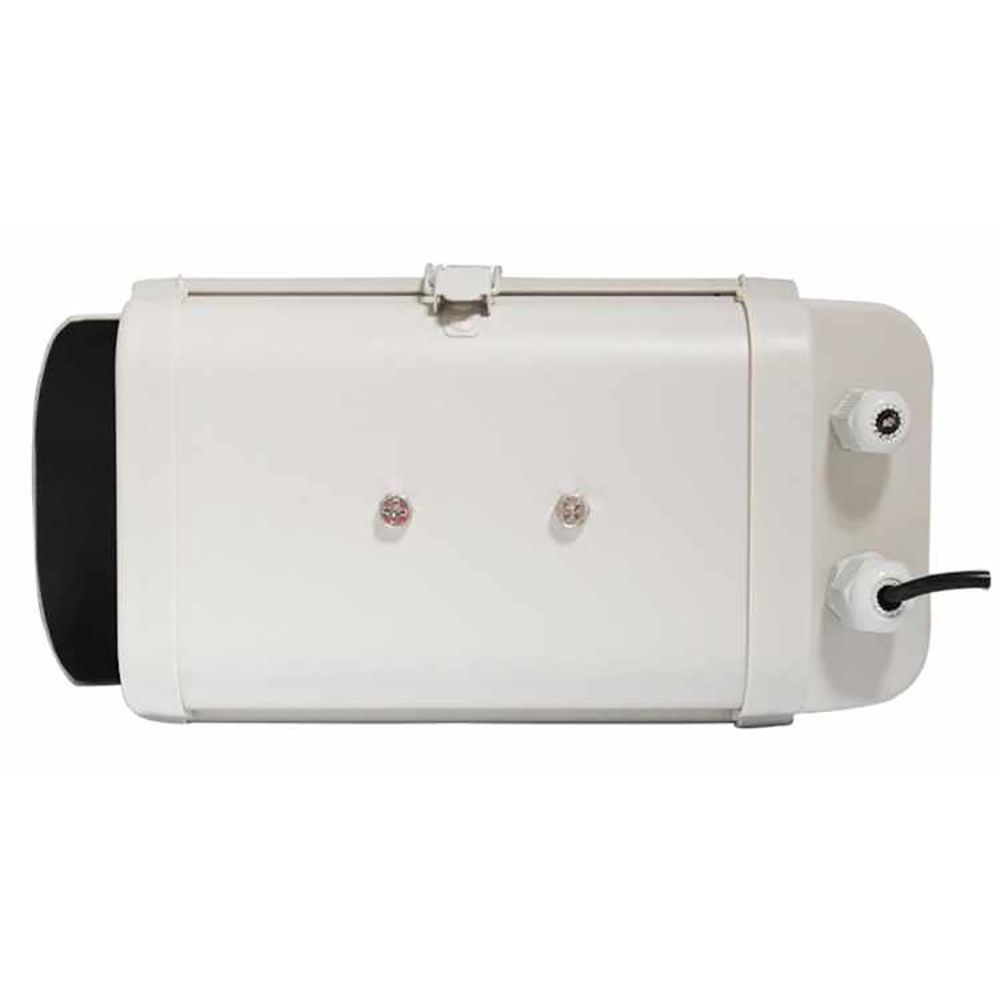

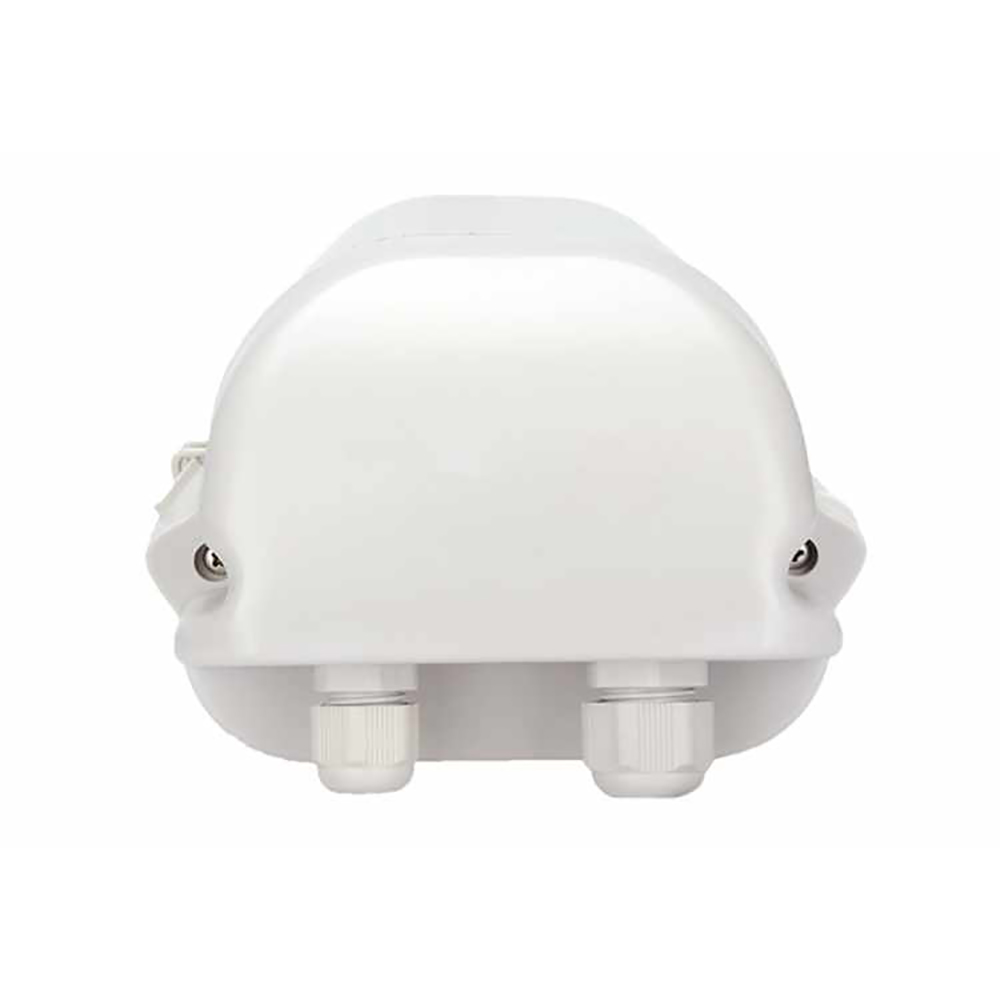

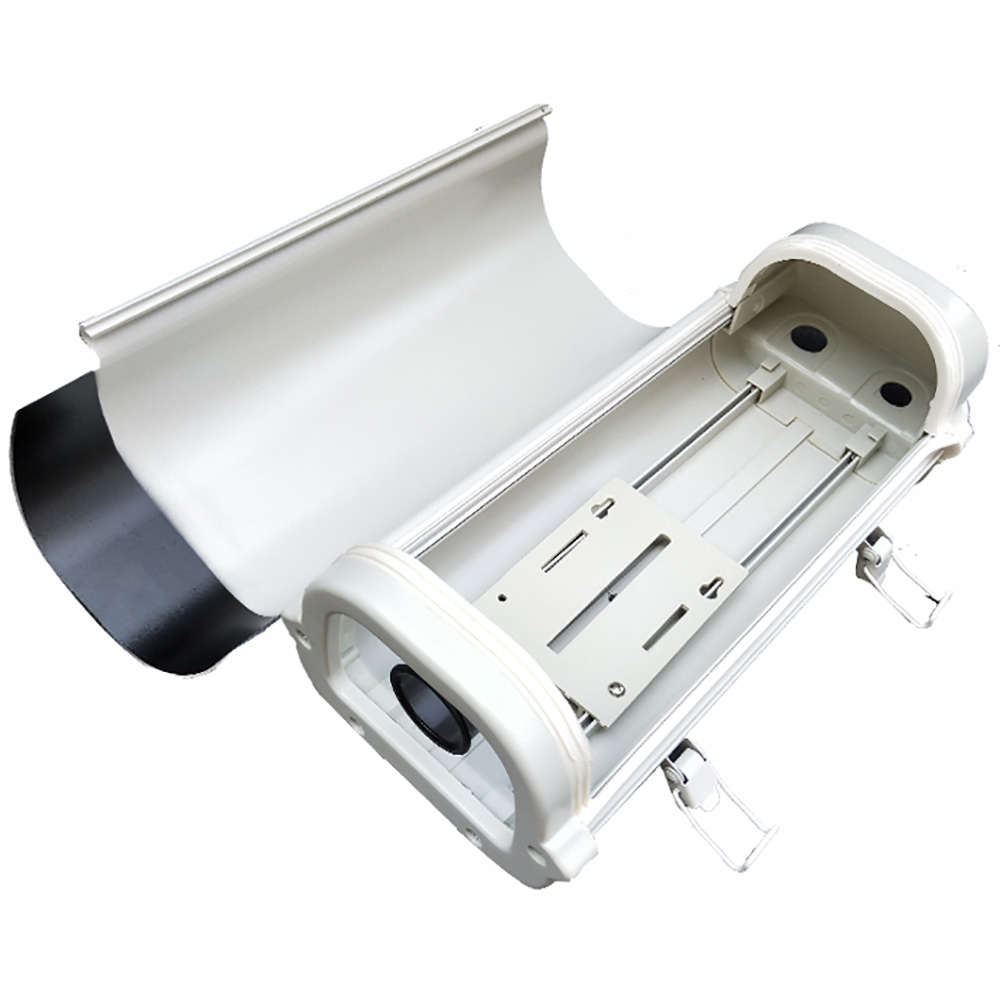

  • * 8 inch Metal Bullet Housing.

Feature:

* Outdoor IP Bullet Camera.

* 2MP/3MP/5MP/8MP Chipset.

* H.265+/H.265/H.264/MJPEG.

* Built-in 6pcs Array IR LED as Default.

* Effective IR Distance:120 Meters.

* Built-in 2MP/3MP/5MP/8MP 5-50mm Manual Varifocal Lens.

* Support XMeye/Danale P2P/SDK/Live Cloud.

* Free 32CH IPClient and 64CH CMS Software.

* Protocols:RTSP/RTMP/ONVIF(Dahua,HK).

* Built-in 48V POE Module:IEEE802.3AF/AT.

* Audio I/O Port on Cable Optional.

* Alarm I/O Port on Cable Optional.

* Motorized Lens Optional.

* Outdoor IP66 Weatherproof standard.

* Support IOS/Android System.

* 8 inch Metal Bullet Housing.


Installation Note:

(1) Do not use this product falls on the ground or the strong tapping;

(2) Unless the instructions, otherwise do not disassemble the machine itself;

(3) Before use, please determine whether the power supply for the specified voltage;

(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a bright or light phenomenon (this is not a fault), will also affect the Chipset life;

(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;

(6) If found abnormal situation, please unplug the power and contact the local distributor.

(7) Lightning protection earth wire should be grounded to the nearest.


Installation and Operating Instructions:

(1) Make sure the power supply voltage is correct: DC12V,POE 48V, inside outside is negative.

(2) Using Cat5/Cat6 cable to transmit video signal to the monitoring equipment.

(3) Choose the right place to fix the camera.

(4) Connect the power and adjust the camera Angle come into view in the position of the target.






Model No.XMTXMCXMSTHSTHX
SystemPAL / NTSC
Video EncodeH.265+/H.265/H.264 Video encoding, support dual-stream AVI format,code stream 0.05Mpbs ~ 8Mpbs
Image Sensor1/3" CMOS1/2.8" CMOS1/2.8" SONY1/2.8" SONY1/2.8" SONY
ChipsetXM530AI+F37XM535AI+SC3335XM530AI+IMX307Hi3516EV200+IMX307Hi3516CV300+IMX290
Resolution2.0 Megapixels3.0 Megapixels2.0 Megapixels2.0 Megapixels2.0 Megapixels
Pixel1080P=1920×10803MP=2304×12961080P=1920×10801080P=1920×10801080P=1920×1080
FPS25FPS20FPS20FPS20FPS25FPS
Illumination0.01 Lux/F1.20.0001 Lux/F1.20.0001 Lux/F1.20.0001 Lux/F1.20.0001 Lux/F1.2
Night ModeLow Light
Low LightStarlightStarlightStarlight/WDR
LENSBuilt-in 3MP/5MP/8MP 5-50mm Manual Varifocal Lens
IR LED6pcs Array IR LED,IR Distance 120 Meters
Audio I/OOptional(Input & Output Ports on Cable)
Alarm I/OOptional(Input & Output Ports on Cable)
Dual StreamMain:1920×1080@20FPS/25FPS,1280×720@25FPS;Sub:704×576@25FPS
Network InterfaceRJ45 10/100M Adaptive Ethernet Interface
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol
Onvif Protocol2.42
Thunder ProtectThunder Protect of Network,POE....
IR board InterfaceInput Signal and Video, IR-CUT, IR led linkage
POEBuilt-in 48V POE Module:IEEE802.3AF/AT
Function

Support WEB configuration, OSD, real-time video transmission, support the motion detecting,

JPEG Screen shot, remote monitoring client software, cloud services,

Mobile phone monitoring (iOS, Windows Mobile, Android), provide SDK

Reliability

Comprehensive lightning protection, 7 * 24 hours -10℃~65high temperature stable and reliable testing

ES

1/50(1/60)s to 1/10,000s

WDRSupport Digital WDR(>=80dB)
Smart FunctionSupport low bit rate, low delay, ROI area of interest and 4 ROI areas
Support occlusion detection, out-of-focus detection, brightness detection, color detection,
sound detection, residual detection, motion detection, virtual warning line, area invasion
Support intelligent control alarm on, off, fault clearance, intelligent noise reduction
ApplicationOutdoor IP66 Weatherproof Standard
Voltage Input

Power 12V DC 2A / POE 48V

Package Size30.5CM*15.5CM*14.5CM
WeightAppro x 2.0kgs(With Bracket)
Model No.XMPXMFTHFXHKDNK
SystemPAL / NTSC
Video EncodeH.265+/H.265/H.264 Video encoding, support dual-stream AVI format,code stream 0.05Mpbs ~ 8Mpbs
Image Sensor1/2.7" CMOS1/2.8" SONY CMOS1/2.8" SONY CMOS1/3.0" CMOS1/2.8" SONY CMOS
ChipsetXM550AI+SC5335PXM550AI+IMX335Hi3516EV300+IMX335FH8856+GC8053 SSC328Q+IMX415
Resolution5.0 Megapixels5.0 Megapixels5.0 Megapixels5.0 Megapixels8.0 Megapixels
Pixel5MP=2592×19445MP=2592×19445MP=2592×19444K=3840×21604K=3840×2160
FPS15FPS15FPS15FPS15FPS20FPS
Color0.05 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.2
Night ModeLow Light
StarlightStarlightLow LightLow Light/HDR
LENSBuilt-in 3MP/5MP/8MP 5-50mm Manual Varifocal Lens
IR LED6pcs Array IR LED,IR Distance 120 Meters
Audio I/OOptional(Input & Output Ports on Cable)
Alarm I/OOptional(Input & Output Ports on Cable)
Dual Stream

XMP/XMF/THF Main Stream:5M=2592*1944@15fps;4M=2560*1440@20fps;Sub-Stream:704*576@25fps;

XHK Main Stream:8M=3840*2160@15fps;5M=2592*1944@25fps;Sub-Stream:704*576@30fps;

DNK Main Stream: 8M=3840*2160@20fps;6M=3072*2048@30fps;Sub-Stream:720*480@30fps;

Network InterfaceRJ45 10/100M Adaptive Ethernet Interface
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol
Onvif Protocol2.42
Thunder ProtectThunder Protect of Network,POE....
IR board InterfaceInput Signal and Video, IR-CUT, IR led linkage
POEBuilt-in 48V POE Module:IEEE802.3AF/AT
FunctionSupport WEB configuration, OSD, real-time video transmission, support the motion detecting,
JPEG Screen shot, remote monitoring client software, cloud services, Mobile phone monitoring
(iOS, Windows Mobile, Android), provide SDK
ReliabilityComprehensive lightning protection, 7 * 24 hours -10℃~65high temperature stable and reliable testing
ES

1/50(1/60)s to 1/10,000s

WDRSupport Digital WDR(>=80dB)
Smart FunctionSupport low bit rate, low delay, ROI area of interest and 4 ROI areas
Support occlusion detection, out-of-focus detection, brightness detection, color detection,
sound detection, residual detection, motion detection, virtual warning line, area invasion
Support intelligent control alarm on, off, fault clearance, intelligent noise reduction
ApplicationOutdoor IP66 Weatherproof Standard
Voltage InputPower 12V DC 2A / POE 48V
Package Size30.5CM*15.5CM*14.5CM
WeightAppro x 2.0kgs(With Bracket)
