Tuya Video DoorBell Camera
POSITION： Home > Products> WIFI Camera> Tuya Video DoorBell Camera
IPW-THS-932
Description：
- * Video DoorBell.
- * TuyaSmart APP.
- * 2.6mm Fisheye.
- * Support TF Card (8-128G);
- * Two Way Audio(Built-in Mic & Speaker);
- * IR Distance More than 10 Meters；

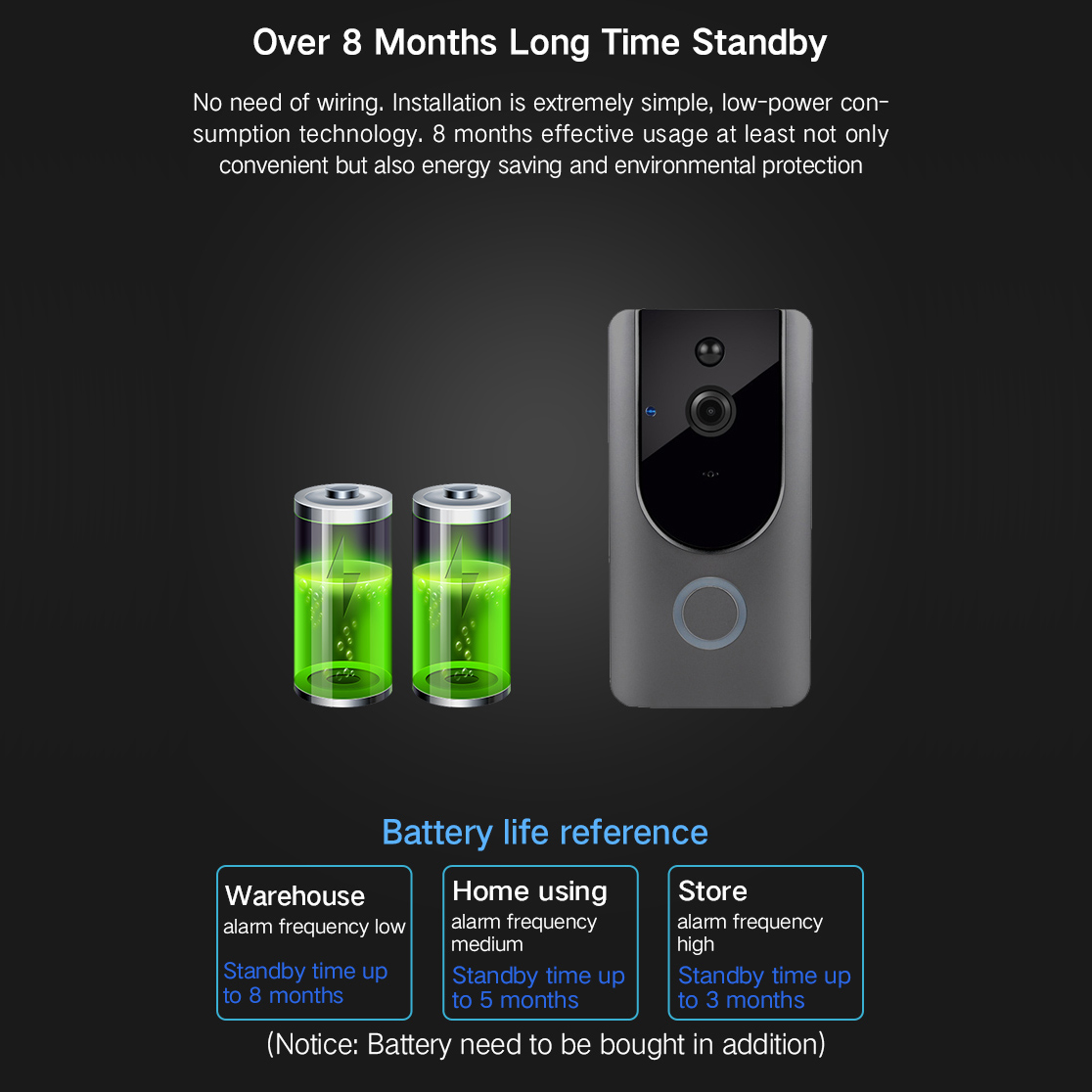

- * With 2pcs 18650 3200mA Batteries;
- * 1080P View Angle 166 Degree;
- * WiFi Signal:Outdoor 50 Meters,Indoor 30 Meters;
- * Outdoor IP66 Weatherproof Standard;
- * Power Supply:DC 5V 1A or AC 14V-24V;
- * Consumption:Standby:120UA Working:170mA;
- * Google home/Amazon Alex Optional;
Feature:
* WiFi Video DoorBell Camera.
* 1920*1080@25FPS HD.
* Support TF Card (8-128G);
* Two Way Audio(Built-in Mic & Speaker);
* H.264+ HD High Profile image decoding；
* IR Distance More than 10 Meters；

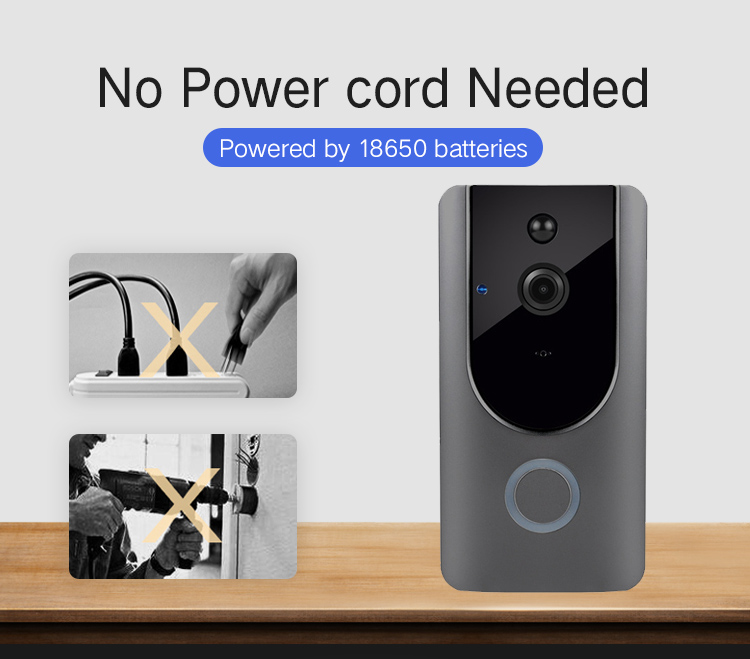

* With 2pcs 18650 3200mA Batteries;
* Built in 2.6mm Fish-eye Lens(View Angle 166 Degree);
* Support push alarm information screen shot;
* 2.4G IEEE*802.11 b/g/n WIFI;

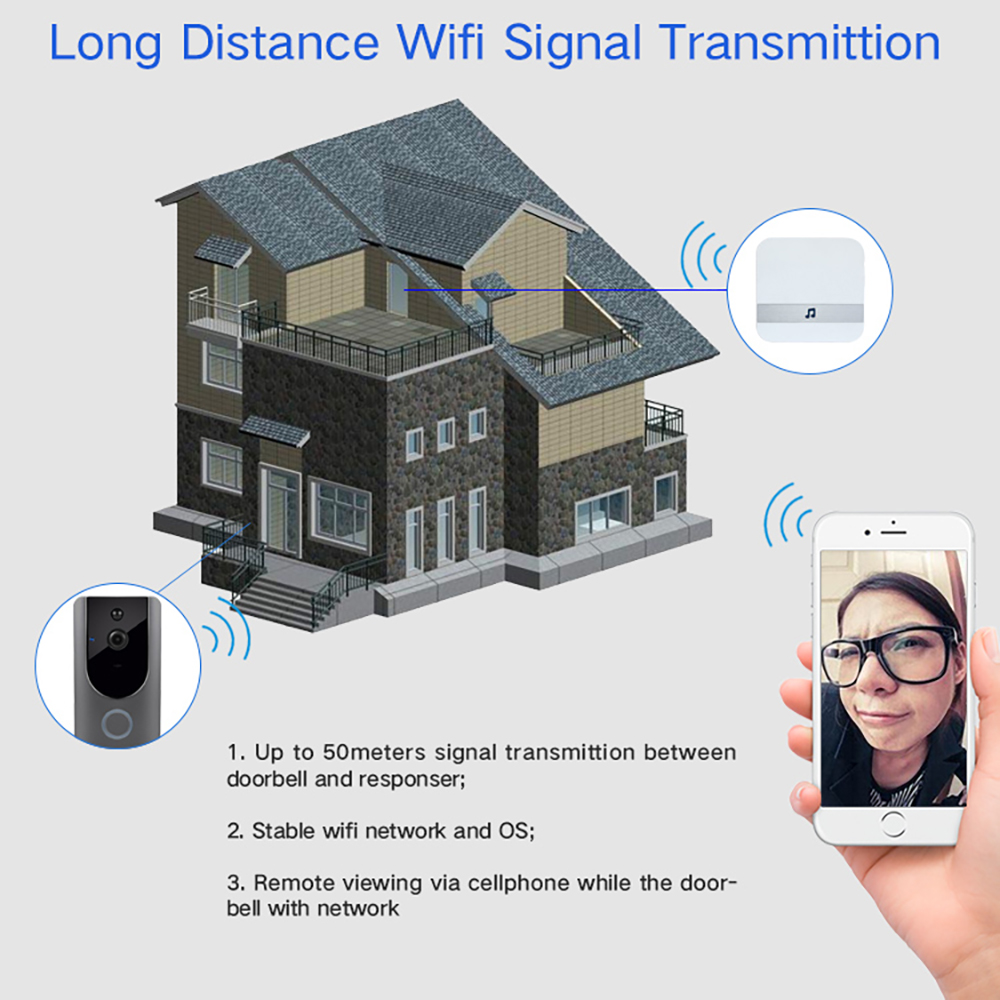

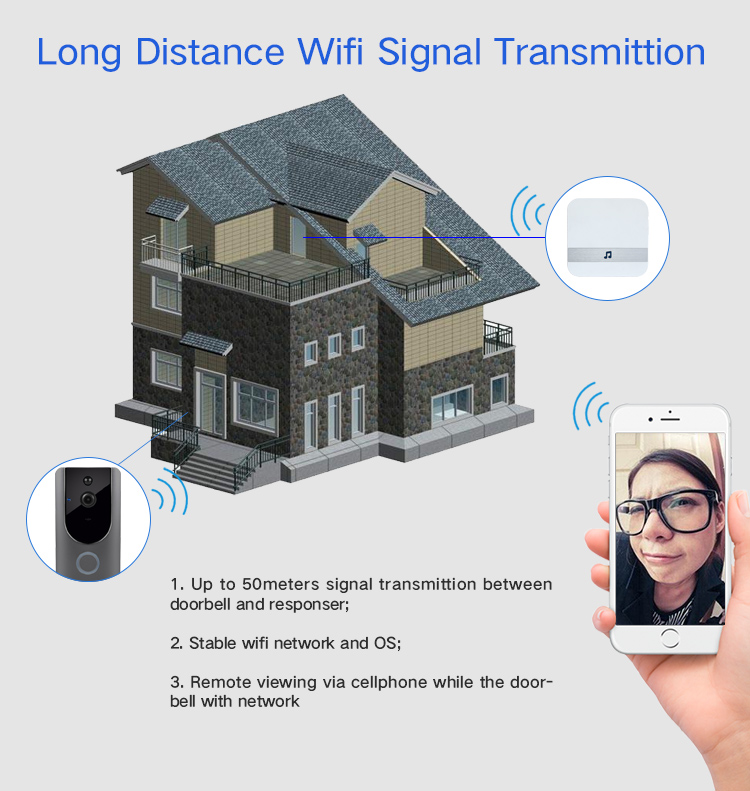

* WiFi Signal:Outdoor 50 Meters,Indoor 30 Meters;
* Outdoor IP65 Weatherproof Standard;
* Power Supply:DC 5V 1A or AC 14V-24V;
* Consumption:Standby:120UA Working:170mA;
* APP:Smart Life/TuyaSmart;
* Google home/Amazon Alex Optional;
Specification:
Item | IPW-THS-932 |
Processor | 1/2.7” CMOS Hi Silicon Hi3518EV300+2063 |
Illumination | Color 0.06 Lux@F1.2(AGC on), B&W 0.08 Lux@F1.2(IR on) |
Code | H.264+ Video Coding,Support Dual Stream |
Resolution | Main Stream: 1920*1080@15FPS;Sub Stream: 640×360@30FPS; |
Bit-rate | CBR/VBR two rate control modes, and the output rate range is 128～4096kbps |
Audio | Built-in Microphone(-48dB)& Speaker(8Ω1W) |
Audio Code | ADPCM/32kbps |
Storage | Support TF Card (Maximum 8-128G) |
Protocol | TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, etc. |
Battery | 2pcs 18650 3200mA Batteries |
WiFi | 2.4 GHz ~ 2.4835 GHz IEEE802.11b/g/n |
WIFI Signal | Outdoor 50 Meters,Indoor 30 Meters |
Lens | Built in 2.6mm Fish-eye Lens(View Angle 166 Degree) |
IR | Dual filters automatically switch, 6pcs 850nm high-power infrared lamps, night vision 10 meters |
PIR | Wake up Time Within 600MS |
Wake Mode | PIR,APP,Push Button |
Alarm | Support push alarm information screen shot |
APP System | IOS/Android |
APP | Smart Life/Tuyasmart |
Platform | Google home/Amazon Alex Optional |
Application | Outdoor IP65 Weatherproof Standard |
Temperature | -10 ℃ - + 50 ℃ |
Power supply | DC 5V 1A or AC 14V-24V |
Power | Standby:160UA Working:170mA |
1pcs | 0.38kgs/21*8.7*8CM |
30pcs | 12.6kgs/43.3*28*42CM |
