Products

Bullet IP Camera

POSITION： Home > Products> IP Camera> Bullet IP Camera

IPC-901

Description：

  • * 2M/3M/5M/8M H.265+.
  • * 5:36pcs IR LED,IR 30M.
  • * 3.6mm Starlight Lens 3M/5M/8M.
  • * 18pcs SMT or 3/6pcs Array IR LED Optional.
  • * Support XMeye/Danale P2P/SDK/Live Cloud.
  • * Free 32CH IPClient and 64CH CMS Software.
  • * Protocols:RTSP/RTMP/ONVIF(Dahua,HK).
  • * Audio I/O Port on Cable Optional.
  • * Alarm I/O Port on Cable Optional.
  • * Built-in 48V POE Module:IEEE802.3AF/AT.

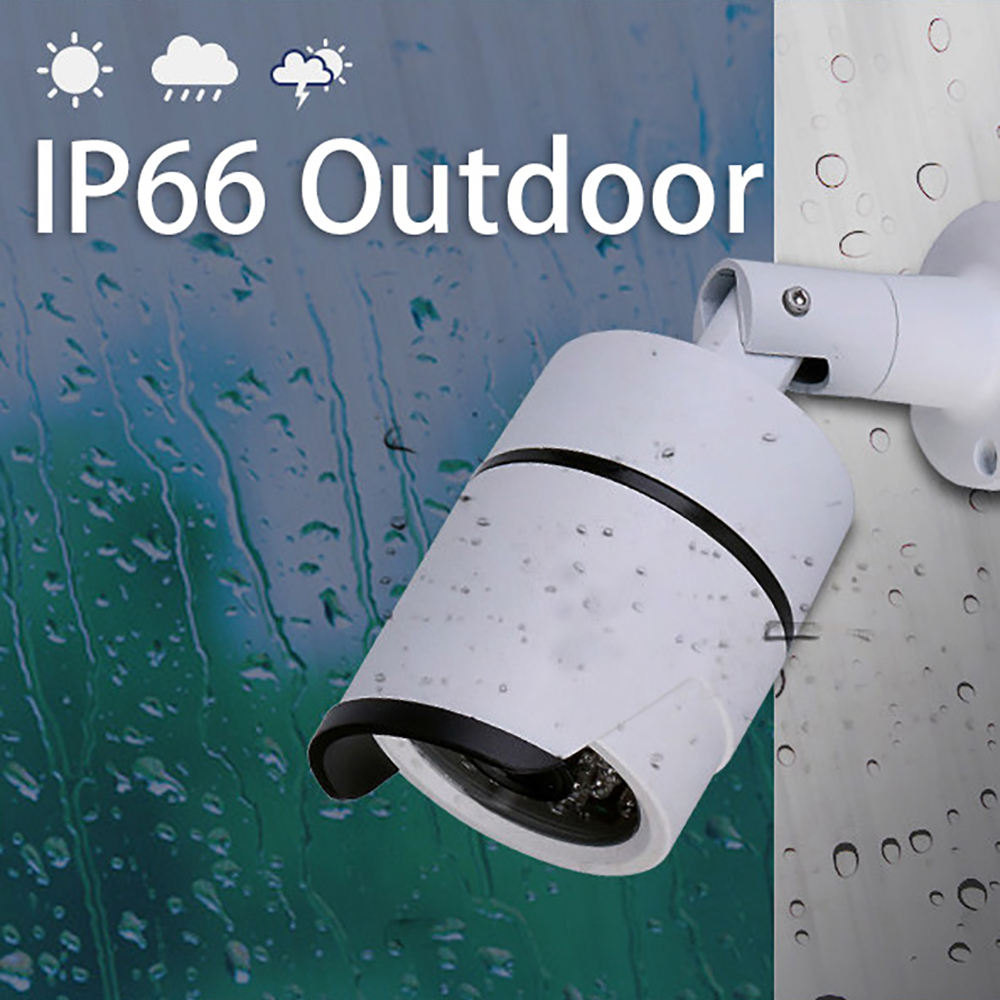

  • * Outdoor IP66 Weatherproof Standard.
  • * Support IOS/Android System.

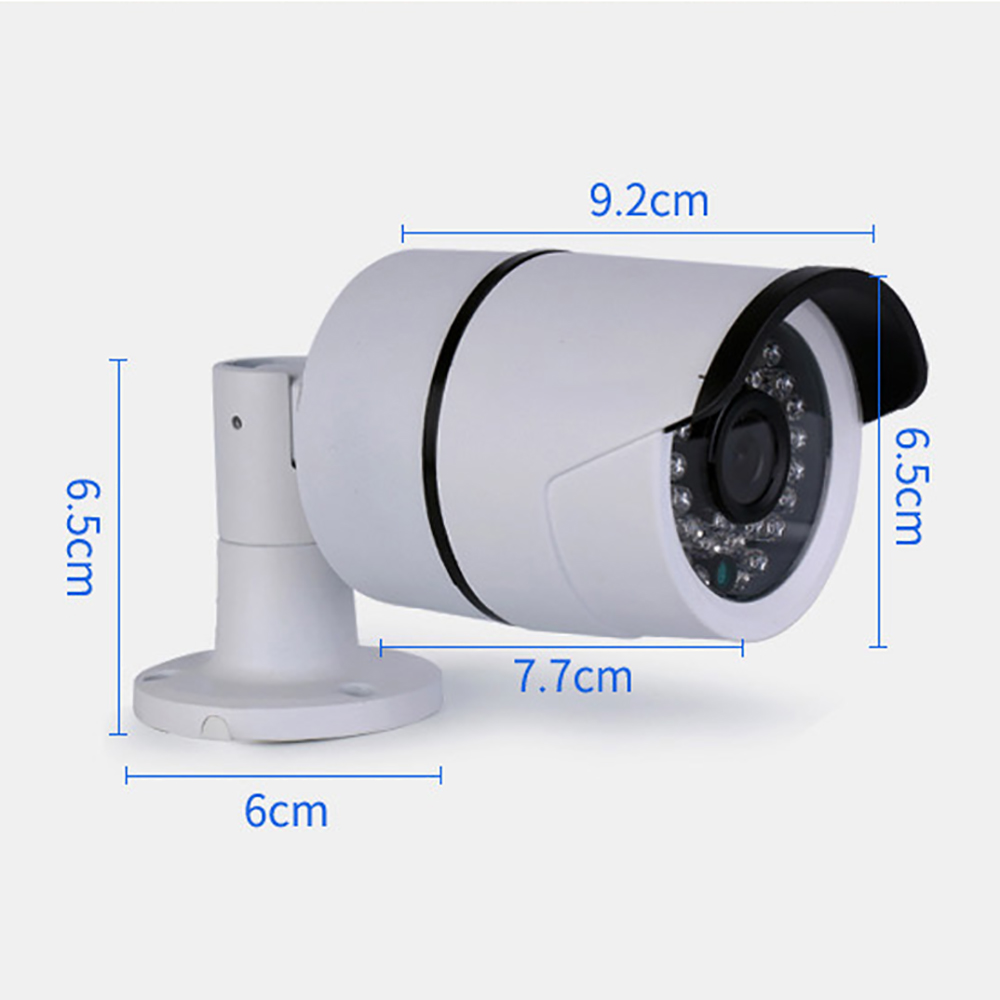

  • * 60mm Metal Bullet Housing.

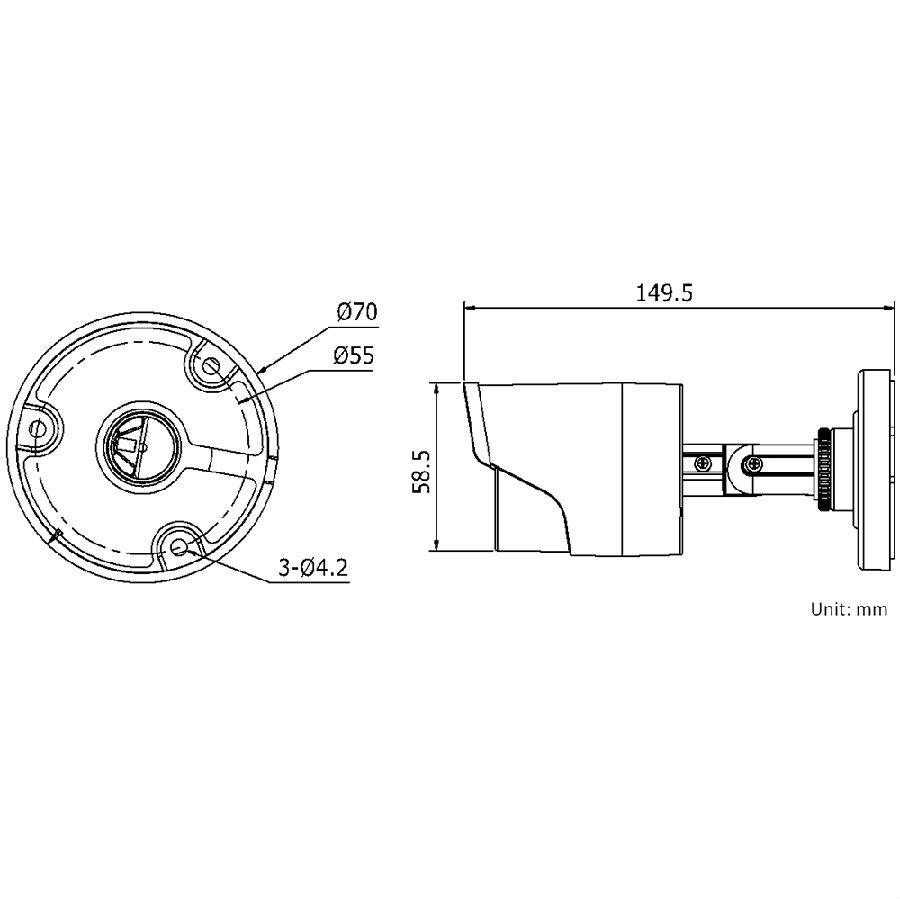

Key Features Specifications Drawing Packing Download

Feature：

* Outdoor IP Bullet Camera.

* 2MP/3MP/5MP/8MP Chipset.

* H.265+/H.265/H.264/MJPEG.

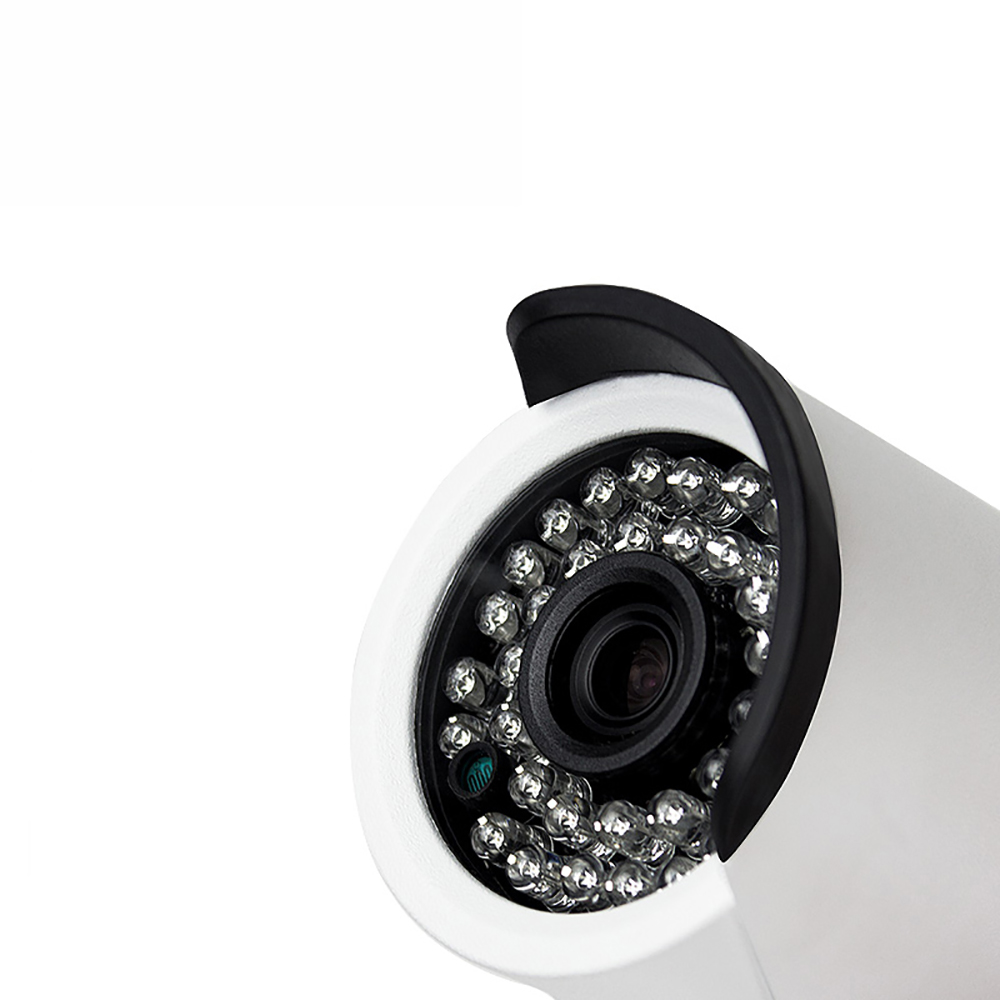

* Built-in 5:36pcs IR LED as Default.

* 18pcs SMT or 3/6pcs Array IR LED Optional.

* Effective IR Distance:30 Meters.

* Built-in 2MP/3MP/5MP/8MP 3.6mm StarLight Fixed Lens.

* Support XMeye/Danale P2P/SDK/Live Cloud.

* Free 32CH IPClient and 64CH CMS Software.

* Protocols:RTSP/RTMP/ONVIF(Dahua,HK).

* Built-in 48V POE Module:IEEE802.3AF/AT.

* Audio I/O Port on Cable Optional.

* Alarm I/O Port on Cable Optional.

* Outdoor IP66 Weatherproof standard.

* Support IOS/Android System.

* 60mm Metal Bullet Housing.


Installation Note:

(1) Do not use this product falls on the ground or the strong tapping;

(2) Unless the instructions, otherwise do not disassemble the machine itself;

(3) Before use, please determine whether the power supply for the specified voltage;

(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a bright or light phenomenon (this is not a fault), will also affect the Chipset life;

(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;

(6) If found abnormal situation, please unplug the power and contact the local distributor.

(7) Lightning protection earth wire should be grounded to the nearest.


Installation and Operating Instructions:

(1) Make sure the power supply voltage is correct: DC12V,POE 48V, inside outside is negative.

(2) Using Cat5/Cat6 cable to transmit video signal to the monitoring equipment.

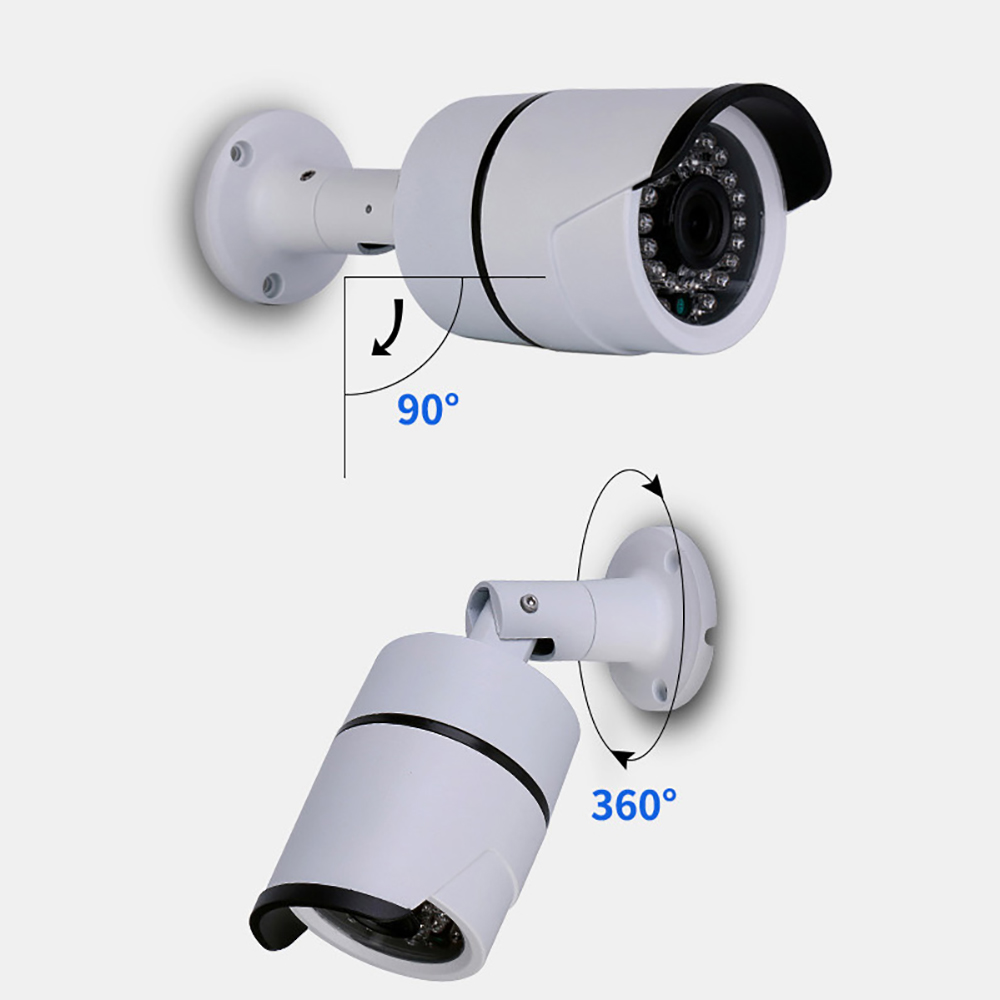

(3) Choose the right place to fix the camera.

(4) Connect the power and adjust the camera Angle come into view in the position of the target.

Model No.

XMT

XMC

XMP

THS

THX

Video Encode

H.265+/H.265/H.264 Video encoding, support dual-stream AVI format,code stream 0.05Mpbs ~ 8Mpbs

Software

App & PC Software:XMeye

Image Sensor

1/2.8" CMOS

1/2.8" CMOS

1/2.7" CMOS

1/2.8" SONY

1/3.0" CMOS

Chipset

GK7205V210+SC5239S

GK7205V210+SC5239S

NT98566+SC8239

GK7205V200+IMX307

GK7201V200+MIS2009

Resolution

4.0 Megapixels

5.0 Megapixels

8.0 Megapixels

3.0 Megapixels

3.0 Megapixels

Pixel

2560*1440@18fps

2592*1944@25fps

3840*2160@15fps

2304*1296@20fps

Illumination

0.01 Lux/F1.2

0.0001 Lux/F1.2

0.0001 Lux/F1.2

0.0001 Lux/F1.2

0.0001 Lux/F1.2

Night Mode

Starlight

Low Light

LENS

Built-in 3MP/5MP/8MP 3.6mm Starlight Fix Lens(2.8mm,6mm....Optional)

IR LED

5:36pcs IR LED as Default,18pcs SMT IR LED or 3pcs/6pcs Array IR LED Optional,IR Distance 30 Meters

Day & Night

IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V

Audio Code

G.711,support bidirectional talk,audio&video synchronization

Audio I/O

Built-in Microphone(Input & Output Ports on Cable Optional)

Alarm I/O

Optional(Input & Output Ports on Cable)

Dual Stream

3840*2160@15fps,2592*1944@25fps,2560*1440@18fps,2304*1296@20fps,1920*1080@25fps;

sub-stream: 1280*720@25fps,800*448@25fps,704*576@25fps

Network Interface

RJ45 10/100M Adaptive Ethernet Interface

Network Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol

Onvif Protocol

2.42

Thunder Protect

Thunder Protect of Network,POE....

IR board Interface

Input Signal and Video, IR-CUT, IR led linkage

POE

Built-in 48V POE Module:IEEE802.3AF/AT

Function

Supported features include WEB configuration, OSD, real-time video transmission, motion detection, JPEG screenshot, remote monitoring client software, cloud services, and mobile phone monitoring. SDK is also provided.

Reliability

Comprehensive lightning protection, 7 * 24 hours -10℃～65℃high temperature stable and reliable testing

ES

1/50(1/60)s to 1/10,000s

WDR

Support Digital WDR(>=80dB)

Smart Function

Support low bit rate, low delay, ROI area of interest and 4 ROI areas

Support occlusion detection, out-of-focus detection, brightness detection, color detection,
sound detection, residual detection, motion detection, virtual warning line, area invasion

Support intelligent control alarm on, off, fault clearance, intelligent noise reduction

Application

Outdoor IP66 Weatherproof Standard

Voltage Input

Power 12V DC 2A / POE 48V

Package Size

19CM*10CM*10CM

Weight

Appro x 0.7kgs(With Bracket)

Model No.

THF

XMS

XMF

XHK

DNK

Video Encode

H.265+/H.265/H.264 Video encoding, support dual-stream AVI format,code stream 0.05Mpbs ~ 8Mpbs

Software

XMeye

EZView

EZView

XMeye

AC18PLUS

Image Sensor

1/2.8" SONY CMOS

1/2.7" CMOS

1/2.8" SONY CMOS

1/2.8" SONY CMOS

1/2.8" SONY CMOS

Chipset

GK7205V300+IMX335

Dual-Core A7 1.2GHz

SSC328Q+IMX415

NT98566+IMX415

SSC339G+IMX415

Resolution

5.0 Megapixels

8.0 Megapixels

Pixels

2592*1944@20fps

2592*1944@25fps

3840*2160@20fps

3840*2160@15fps

3840*2160@30fps

Color

0.0001 Lux/F1.2

0.001 Lux/F1.2

0.001 Lux/F1.2

0.001 Lux/F1.2

0.001 Lux/F1.2

Night Mode

Starlight

WDR=120dB

WDR=120dB

DWDR

DWDR

LENS

Built-in 3MP/5MP/8MP 3.6mm Starlight Fix Lens(2.8mm,6mm....Optional)

IR LED

5:36pcs IR LED as Default,18pcs SMT IR LED or 3pcs/6pcs Array IR LED Optional,IR Distance 30 Meters

Day & Night

IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V

Audio Code

G.711,support bidirectional talk,audio&video synchronization

Audio I/O

Built-in Microphone(Input & Output Ports on Cable Optional)

Alarm I/O

Optional(Input & Output Ports on Cable)

Dual Stream

3840*2160@15fps,2592*1944@25fps,2560*1440@18fps,2304*1296@20fps,1920*1080@25fps;

sub-stream: 1280*720@25fps,800*448@25fps,704*576@25fps

Network Interface

RJ45 10/100M Adaptive Ethernet Interface

Network Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF etc network protocol

Onvif Protocol

2.42

Thunder Protect
