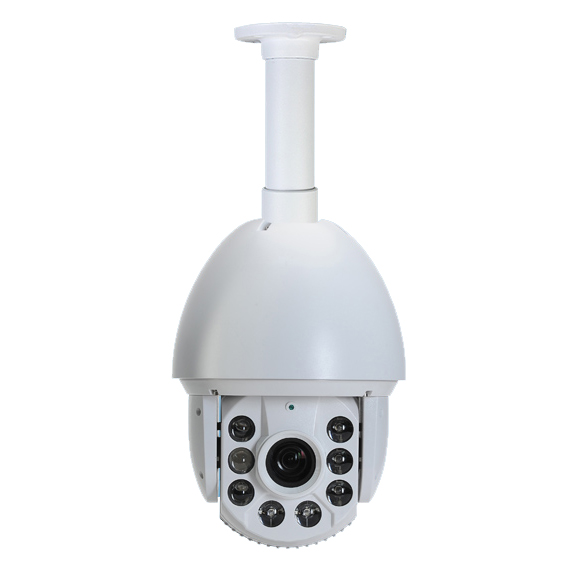

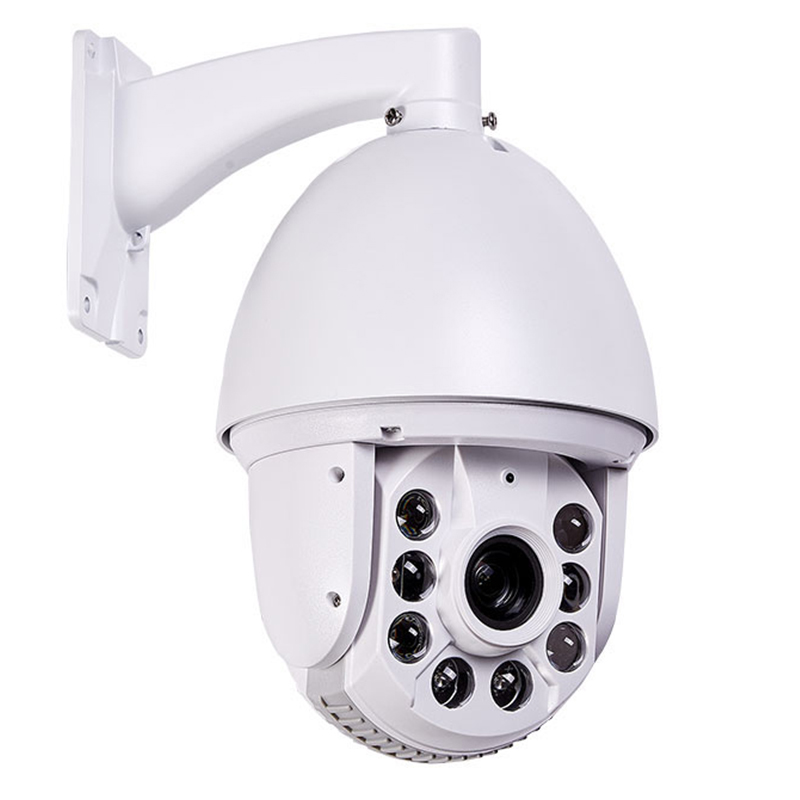

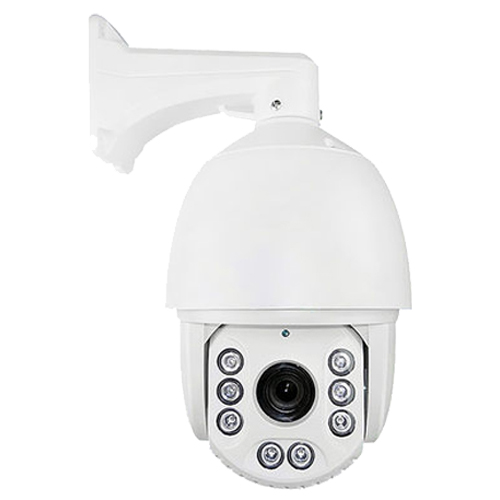

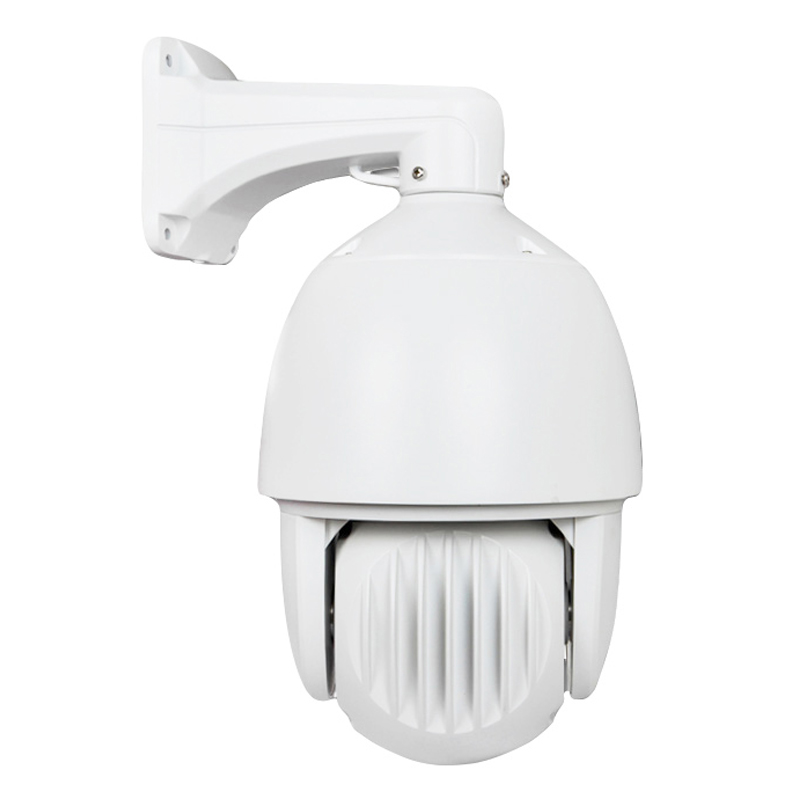

HS-7100 7.0 inch

Description:

  • * 2.0MP/5.0MP Analog/IP.
  • * 18/33/36X Optical Zoom.
  • * With 8pcs Array IR 120M.
  • * Medium/High Speed Dome Camera.
  • * Medium Range:Pan:0º~360º , Tilt:-0º~93º.
  • * Medium Speed:Pan:0~60°/s , Tilt:0~45º/s.
  • * High Range:Pan:0º~360º , Tilt:-0º~180º.
  • * High Speed:Pan:0~200°/s , Tilt:0~100º/s.
  • * POE/Audio/Alarm/TF Card Optional.
  • * IP66 Weatherproof Standard.
  • * Transient Voltage 6000V Thunder Protect.

Feature:

* 2.0MP/5.0MP Analog/IP.

* 18/33/36X Optical Zoom.

* With 8pcs Array IR Led.

* Effect IR Distance 120M.

* Medium/High Speed Dome Camera.

* Medium Range:Pan:0º~360º , Tilt:-0º~93º.

* Medium Speed:Pan:0~60°/s , Tilt:0~45º/s.

* High Range:Pan:0º~360º , Tilt:-0º~180º.

* High Speed:Pan:0~200°/s , Tilt:0~100º/s.

* POE/Audio/Alarm/TF Card Optional.

* IP66 Weatherproof Standard.

* Transient Voltage 6000V Thunder Protect.

* Minimum illumination of 0.00 Lux (Led on).

* Support Remotely Upgrade.

* PWM Infrared Light Technology.


Installation Note:

(1) Do not use this product falls on the ground or the strong tapping;

(2) Unless the instructions, otherwise do not disassemble the machine itself;

(3) Before use, please determine whether the power supply for the specified voltage;

(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a bright or light phenomenon (this is not a fault), will also affect the Chipset life;

(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;

(6) If found abnormal situation, please unplug the power and contact the local distributor.

(7) Lightning protection earth wire should be grounded to the nearest.


Model No.HS-F4M-7118HS-F4M-7133HS-H4M-7118HS-H4M-7133HS-THS-7118
Video EncodeAHD/TVI/CVI/XVI/CVBSH.264
Image Sensor1/3" SONY CMOS1/3" SONY CMOS
ChipsetNVP2441H+SONY IMX323(3D NR)Hi3516CV300+IMX323
Resolution2.0 Megapixels2.0 Megapixels
Pixel1080P=1920×10801080P=1920×1080
FPS25FPS25FPS
Illumination0.01 Lux/F1.20.01 Lux/F1.20.01 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.2
Optical LENS18X(5.35MM~96.3MM)33X(4.9MM~161.7MM)18X(5.35MM~96.3MM)33X(4.9MM~161.7MM)18X(5.35MM~96.3MM)
SpeedMedium SpeedMedium SpeedHigh SpeedHigh SpeedMedium Speed
IR LED8pcs Array IR LED 120Meters
Rotation Range/Speed

Medium:Pan:0º~360º , Tilt:-93º~40º Speed:Pan:0~60°/s , Tilt:0~45º/s

 High:Pan:0º~360º , Tilt:-0º~180º /Speed:Pan:0~200°/s , Tilt:0~100º/s

Preset Points220pcs presetsdwell time 01-60s interval available
Guard Tours3 groups( Max.16 points, dwell time user selectable)
AB Scan Range/SpeedAny point in range:-45º~40º and 0º~200º/1-9 grades
BLC/AGC/WBSupport/Auto/manual/Auto/Manual/Indoor/Outdoor
Thunder ProtectTransient Voltage 6000V Thunder Protect of Network,POE....
IR board InterfaceOriginal PWM infrared light technology, uniform brightness, low calorific value,
The service life of infrared lamp is longer than 3 times.
IP Specification
Video ProcessingH.264 Video encoding, support dual-stream AVI format, code stream 0.05Mpbs ~ 3Mpbs
Network InterfaceRJ45 10/100M Adaptive Ethernet Interface
Network ProtocolTCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
OptionalPoE (IEEE802.3af)/Audio(G711,PCM )TF CARD(MAX 128G)
FunctionSupport IE WEB configuration, OSD, real-time video transmission, support the motion detecting,
JPEG Screen shot, remote monitoring client software CMS,
Mobile phone monitoring (iPhone, Windows Mobile, Android), provide SDK
S/N Ratio>=50dB
ES1/50 - 1/10,0000S
Working Temp.Outdoor: -40~+70
Voltage InputPower 12V DC 3A
Package SizeW295mm*D280mm*H170mm
WeightGross Weight:2.24KG(With Bracket)
Model No.HS-THS-7136HS-HHS-7118HS-HHS-7136HS-TAF-7118HS-HAF-7118
Video EncodeH.264H.265
Image Sensor1/3" SONY CMOS1/3" CMOS
ChipsetHi3516CV300+IMX323Hi3516D+AR5521
Resolution2.0 Megapixels5.0 Megapixels
Pixel1080P=1920×10802592x1944/2592x1520
FPS25FPS15FPS/25FPS
Illumination0.001 Lux/F1.20.001 Lux/F1.20.01 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.2
LENS36X(4.6MM-165MM)18X(5.35MM~96.3MM)36X(4.6MM-165MM)18X(5.35MM~96.3MM)18X(5.35MM~96.3MM)
SpeedMedium SpeedHigh SpeedHigh SpeedMedium SpeedHigh Speed
IR LED8pcs Array IR LED 120Meters
Rotation Range/Speed

Medium:Pan:0º~360º , Tilt:-93º~40º Speed:Pan:0~60°/s , Tilt:0~45º/s

 High:Pan:0º~360º , Tilt:-0º~180º /Speed:Pan:0~200°/s , Tilt:0~100º/s

Preset Points220pcs presetsdwell time 01-60s interval available
Guard Tours3 groups( Max.16 points, dwell time user selectable)
AB Scan Range/SpeedAny point in range:-45º~40º and 0º~200º/1-9 grades
BLC/AGC/WBSupport/Auto/manual/Auto/Manual/Indoor/Outdoor
Thunder ProtectTransient Voltage 6000V Thunder Protect of Network,POE....
IR board InterfaceOriginal PWM infrared light technology, uniform brightness, low calorific value,
The service life of infrared lamp is longer than 3 times.
IP Specification
Video ProcessingH.264 Video encoding, support dual-stream AVI format, code stream 0.05Mpbs ~ 3Mpbs
Network InterfaceRJ45 10/100M Adaptive Ethernet Interface
Network ProtocolTCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
OptionalPoE (IEEE802.3af)/Audio(G711,PCM )TF CARD(MAX 128G)
FunctionSupport IE WEB configuration, OSD, real-time video transmission, support the motion detecting,
JPEG Screen shot, remote monitoring client software CMS,
Mobile phone monitoring (iPhone, Windows Mobile, Android), provide SDK
S/N Ratio>=50dB
ES1/50 - 1/10,0000S
Working Temp.Outdoor: -40~+70
Voltage InputPower 12V DC 3A
Package SizeW295mm*D280mm*H170mm
WeightGross Weight:2.24KG(With Bracket)
