HIS-002

Description:

  • * 1/2/3/4/5/8MP.
  • * 3.6mm Fix Lens.
  • * 2.8/6/12mm Optional.
  • * Plastic Somke Camera.
  • * With Metal IR CUT Flitter.
  • * OSD Cable on Menu to adjust.
  • * UTC By Coaxial Cable up to 500 Meters.
  • * Support AHD/TVI/CVI/XVI/CVBS.
  • * Support DWDR 3DNR.
  • * Starlight Lens Optional.

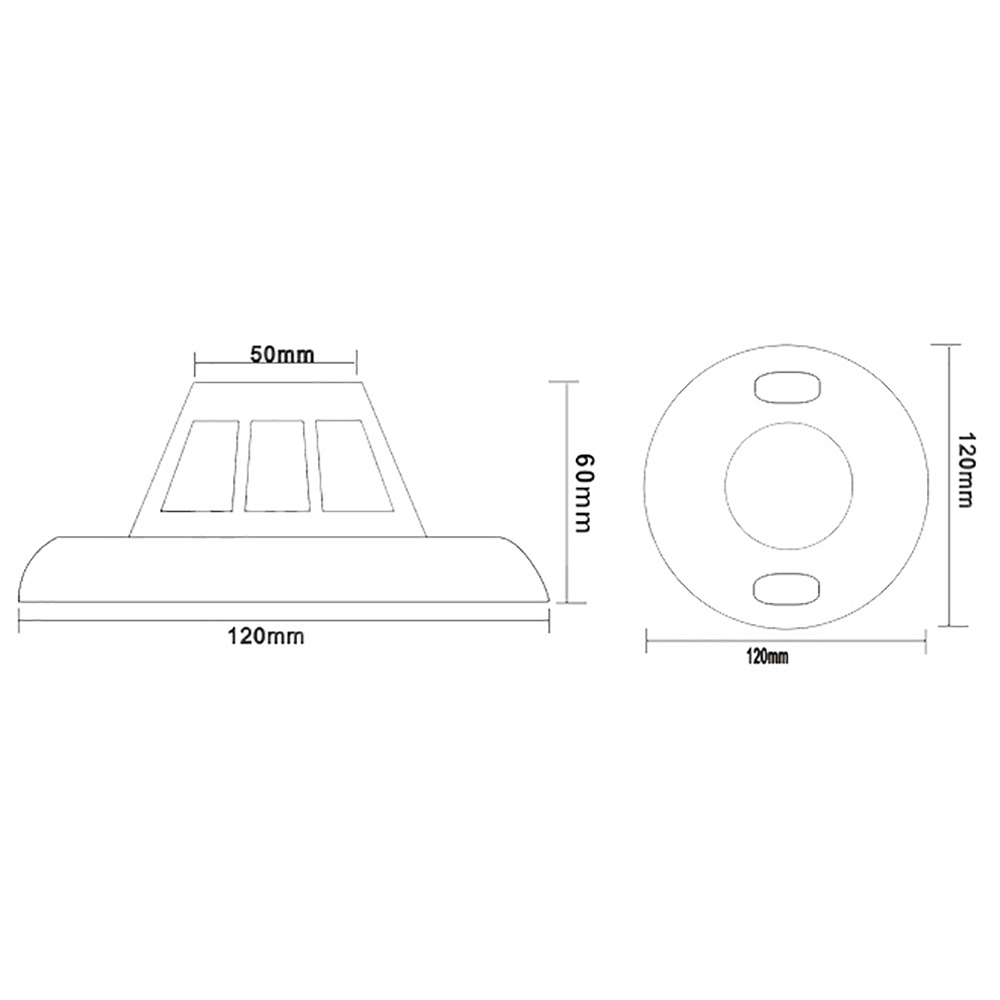

  • * #75 Size Housing.

Feature:

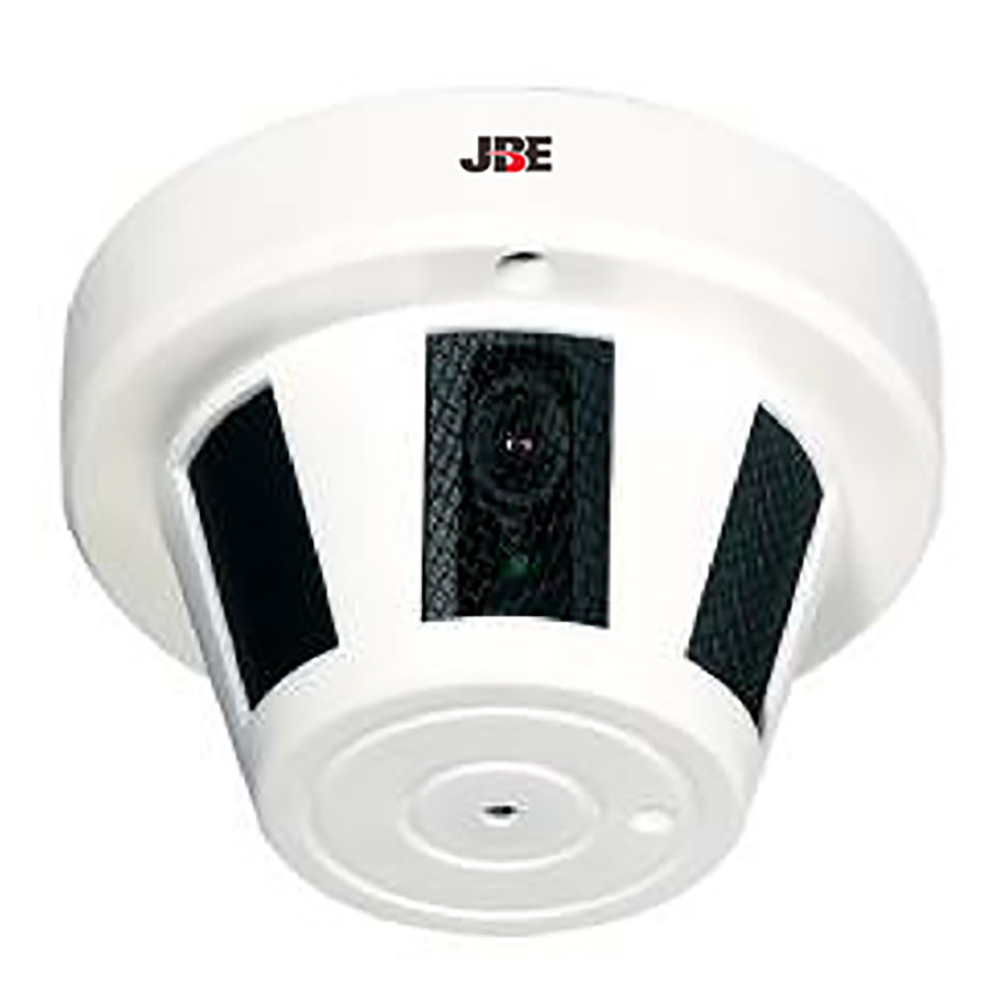

* Smoke Detector Hidden Camera.

* 1/2/3/4/5/8MP Chipset Optional.

* Built in 3/5/8MP 3.6mm Fix Lens.

* 2.8mm/6mm/12mm Fix Lens Optional.

* With Metal IR CUT Flitter.

* OSD Cable on Menu to adjust.

* UTC By Coaxial Cable up to 500 Meters.

* Support AHD/TVI/CVI/XVI/CVBS.

* Double Glass + Hoop Unique Design.

* Application:Indoor.

* Starlight Lens Optional.

* Support DWDR 3DNR/2DNR.


Installation Note:

(1) Do not use this product falls on the ground or the strong tapping;

(2) Unless the instructions, otherwise do not disassemble the machine itself;

(3) Before use, please determine whether the power supply for the specified voltage;

(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a bright or light phenomenon (this is not a fault), will also affect the Chipset life;

(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;

(6) If found abnormal situation, please unplug the power and contact the local distributor.

(7) Lightning protection earth wire should be grounded to the nearest.


Installation and Operating Instructions:

(1) Make sure the power supply voltage is correct: DC12V, inside outside is negative.

(2) Using 75 Ω coaxial cable to transmit video signal to the monitoring equipment.

(3) Choose the right place to fix the camera.

(4) Connect the power and adjust the camera Angle come into view in the position of the target.


Model No.F4FF4TF4MF4SF4X
SystemPAL / NTSC(Compatible With Both,Switch By OSD)
Image Sensor1/4" CMOS1/3.6" CMOS1/2.9" SONY CMOS1/2.8" SONY CMOS1/2.8" SONY CMOS
ChipsetXM310V300+SP140AXM320+SC2045NVP2441H+IMX323NVP2441H+IMX307NVP2441H+IMX291
Resolution1.0 Megapixels2.0 Megapixels2.0 Megapixels2.0 Megapixels2.0 Megapixels
Pixel720P=1280×7201080P=1920×10801080P=1920×10801080P=1920×10801080P=1920×1080
Switch ModeAHD/TVI/CVI/XVI/CVBS
Illumination0.01 Lux/F1.20.005 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.2
LENSBuilt-in 3MP/5MP/8MP 3.6mm Fix Lens
IR LEDNo
S/N Ratio>=52dB
DNR2D NR & DWDR2D & 3D NR & DWDR
Electronic ShutterAUTO(1/53(63)~1/100,000);MANUAL:1/53(63),FL1/120(100),1/250,1/500,1/1,000,1/2,000,1/4,000,1/10,000 Seconds
White BalanceATW/MANUAL
Gamma Ratio>=0.45
Video output1.0Vp-p, 75II Composite, BNC x 1(Support AHD/TVI/CVI/CVBS)
AGCAUTO(4 STEP)
Working Temp.Outdoor: -10C to +50C
Humidity0 to 95% RH (non-condensing)
Sync System2:1 interlace internal Sync.
Voltage Input12V DC 2A
Package Size10CM*15CM*15CM
WeightAppro x 0.50kgs
Model No.AHFAHTAHMAHSAHX
SystemPAL / NTSC(Compatible With Both,Switch By OSD)
Image Sensor1/3" CMOS1/2.7" CMOS1/3" SONY CMOS1/3" SONY CMOS1/3" SONY CMOS
ChipsetNVP2470H+Aptina0330NVP2475H+OV4689FH8538M+IMX335NVP2477H+IMX326Hi3556+IMX274
Resolution3.0 Megapixels4.0 Megapixels5.0 Megapixels5.0 Megapixels8.0 Megapixels
Pixel3MP=2304×12964MP= 2688×15205MP=2560×19205MP=2560×19208MP=4096×2160
Switch ModeAHD/TVI/CVI/XVI/CVBSTVI
Illumination0.005 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.20.001 Lux/F1.2
LENSBuilt-in 3MP/5MP/8MP 3.6mm Fix Lens
IR LEDNo
S/N Ratio>=52dB
DNR2D NR & DWDR2D & 3D NR & DWDR
Electronic ShutterAUTO(1/53(63)~1/100,000);MANUAL:1/53(63),FL1/120(100),1/250,1/500,1/1,000,1/2,000,1/4,000,1/10,000 Seconds
White BalanceATW/MANUAL
Gamma Ratio>=0.45
Video output1.0Vp-p, 75II Composite, BNC x 1(Support AHD)
AGCAUTO(4 STEP)
Working Temp.Outdoor: -10C to +50C
Humidity0 to 95% RH (non-condensing)
Sync System2:1 interlace internal Sync.
Voltage Input12V DC 2A
Package Size10CM*15CM*15CM
WeightAppro x 0.50kgs
